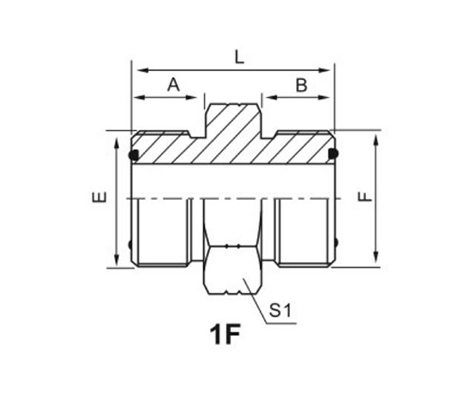

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||||||
|
E |
F |
E |
F |
A |
B |
L |
S1 |
|
|
|
1F-04 |
9/16"X18 |
9/16"X18 |
0011 |
0011 |
9.8 |
9.8 |
27.5 |
17 |
|
|
1F-04-06 |
9/16"X18 |
11/16"X16 |
0011 |
0012 |
9.8 |
11.2 |
29.7 |
19 |
|
|
1F-04-08 |
9/16"X18 |
13/16"X16 |
0011 |
0014 |
9.8 |
12.8 |
32.5 |
22 |
|
|
1F-06 |
11/16"X16 |
11/16"X16 |
0012 |
0012 |
11.2 |
11.2 |
31.1 |
19 |
|
|
1F-06-08 |
11/16"X16 |
13/16"X16 |
0012 |
0014 |
11.2 |
12.8 |
33.8 |
22 |
|
|
1F-06-10 |
11/16"X16 |
1"X14 |
0012 |
0016 |
11.2 |
15.5 |
38 |
27 |
|
|
1F-08 |
13/16"X16 |
13/16"X16 |
0014 |
0014 |
12.8 |
12.8 |
35.4 |
22 |
|
|
1F-08-10 |
13/16"X16 |
1"X14 |
0014 |
0016 |
12.8 |
15.5 |
40 |
27 |
|
|
1F-08-12 |
13/16"X16 |
1.3/16"X12 |
0014 |
0018 |
12.8 |
17 |
43 |
32 |
|
|
1F-10 |
1"X14 |
1"X14 |
0016 |
0016 |
15.5 |
15.5 |
42.5 |
27 |
|
|
1F-10-12 |
1"X14 |
1.3/16"X12 |
0016 |
0018 |
15.5 |
17 |
45.5 |
32 |
|
|
1F-12 |
1.3/16"X12 |
1.3/16"X12 |
0018 |
0018 |
17 |
17 |
47.1 |
32 |
|
|
1F-12-16 |
1.3/16"X12 |
1.7/16"X12 |
0018 |
0021 |
17 |
17.5 |
45.5 |
38 |
|
|
1F-12-20 |
1.3/16"X12 |
1.11/16"X12 |
0018 |
0025 |
17 |
17.5 |
50.5 |
46 |
|
|
1F-16 |
1.7/16"X12 |
1.7/16"X12 |
0021 |
0021 |
17.5 |
17.5 |
49.3 |
38 |
|
|
1F-16-20 |
1.7/16"X12 |
1.11/16"X12 |
0021 |
0025 |
17.5 |
17.5 |
51.3 |
46 |
|
|
1F-16-24 |
1.7/16"X12 |
2"X12 |
0021 |
0029 |
17.5 |
17.5 |
53 |
55 |
|
|
1F-20 |
1.11/16"X12 |
1.11/16”X12 |
0025 |
0025 |
17.5 |
17.5 |
51.3 |
46 |
|
|
1F-20-24 |
1.11/16"X12 |
2"X12 |
0025 |
0029 |
17.5 |
17.5 |
53 |
55 |
|
|
1F-24 |
2"X12 |
2"X12 |
0029 |
0029 |
17.5 |
17.5 |
53 |
55 |
|
