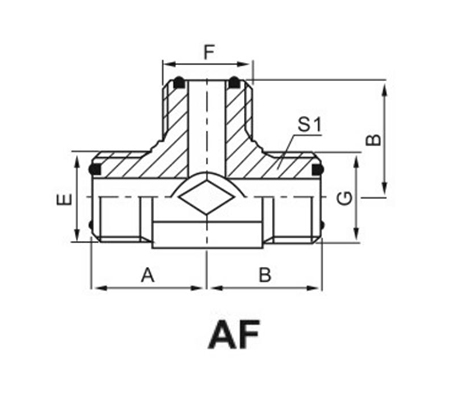

ORFS MALE O-RING TEE

Home / Specification / Hydraulic Adapter / ORFS Fittings / ORFS MALE O-RING TEE

How Can We Help You?

+86-13805809210 Contact Us

ORFS MALE O-RING TEE

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    THREAD

    O-RING

    DIMENSIONS

    E

    F

    G

    E

    F

    G

    A

    B

    C

    S1



    AF-04

    9/16"X18

    9/16"X18

    9/16"X18

    0011

    0011

    0011

    23

    23

    23

    14



    AF-06

    11/16"X16

    11/16"X16

    11/16"X16

    0012

    0012

    0012

    27

    27

    27

    19



    AF-08

    13/16"X16

    13/16"X16

    13/16"X16

    0014

    0014

    0014

    31

    31

    31

    22



    AF-10

    1"X14

    1"X14

    1"X14

    0016

    0016

    0016

    36.5

    36.5

    36.5

    27



    AF-12

    1.3/16"X12

    1.3/16"X12

    1.3/16"X12

    0018

    0018

    0018

    40.3

    40.3

    40.3

    30



    AF-16

    1.7/16"X12

    1.7/16"X12

    1.7/16"X12

    0021

    0021

    0021

    44.5

    44.5

    44.5

    36



    AF-20

    1.11/16"X12

    1.11/16"X12

    1.11/16"X12

    0025

    0025

    0025

    47.5

    47.5

    47.5

    41



    AF-24

    2"X12

    2"X12

    2"X12

    0029

    0029

    0029

    53.5

    53.5

    53.5

    50
