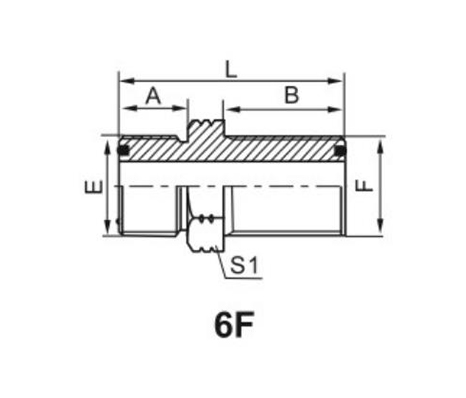

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||||||
|
E |
F |
E |
F |
A |
B |
L |
S1 |
S2 |
|
|
6F-04 |
9/16"X18 |
9/16"X18 |
0011 |
0011 |
9.8 |
31.5 |
48.2 |
22 |
22 |
|
6F-06 |
11/16"X16 |
11/16"X16 |
0012 |
0012 |
11.2 |
34 |
53.2 |
27 |
27 |
|
6F-08 |
13/16..X16 |
13/16"X16 |
0014 |
0014 |
12.8 |
36.5 |
58.3 |
30 |
30 |
|
6F-10 |
1..X14 |
1"X14 |
0016 |
0016 |
15.5 |
40.6 |
66.6 |
36 |
36 |
|
6F-12 |
1.3/16"X12 |
1.3/16"X12 |
0018 |
0018 |
17 |
41.7 |
69.2 |
38 |
38 |
|
6F-16 |
1.7/16MX12 |
1.7/16"X12 |
0021 |
0021 |
17.5 |
42.2 |
70.2 |
46 |
46 |
|
6F-20 |
1.11/16"X12 |
1.11/16"X12 |
0025 |
0025 |
17.5 |
42.2 |
70.2 |
50 |
50 |
|
6F-24 |
2”X12 |
2"X12 |
0029 |
0029 |
17.5 |
42.2 |
70.2 |
60 |
60 |
|

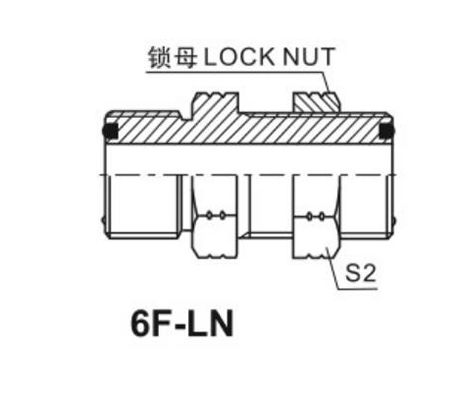

Note:In case if you are interested to order the adapter with lock nut,please insert suffix “LN” after our part NO.,for example 6F-16LN，The lock nut NO. is 8F. |
|||||||||
