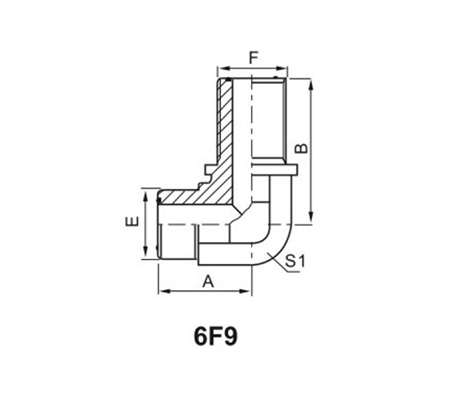

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||||||
|
E |
F |
E |
F |
A |
B |
S1 |
S2 |
|
|
|
6F9-04 |
9/16"X18 |
9/16"X18 |
O011 |
O011 |
23 |
47 |
14 |
22 |
|
|
6F9-06 |
11/16"X16 |
11/16"X16 |
O012 |
O012 |
27.5 |
52 |
19 |
27 |
|
|
6F9-08 |
13/16"X16 |
13/16"X16 |
O014 |
O014 |
31 |
55.5 |
22 |
30 |
|
|
6F9-10 |
1"X14 |
1"X14 |
O016 |
O016 |
36.5 |
63 |
27 |
36 |
|
|
6F9-12 |
1.3/16"X12 |
1.3/16"X12 |
O018 |
O018 |
38.5 |
67.2 |
30 |
38 |
|
|
6F9-16 |
1.7/16"X12 |
1.7/16"X12 |
O021 |
O021 |
44.5 |
71.2 |
36 |
46 |
|
|
6F9-20 |
1.11/16"X12 |
1.11/16"X12 |
O025 |
O025 |
47.5 |
75.5 |
41 |
50 |
|
|
6F9-24 |
2"X12 |
2"X12 |
O029 |
O029 |
53.5 |
79.5 |
50 |
60 |
|
|

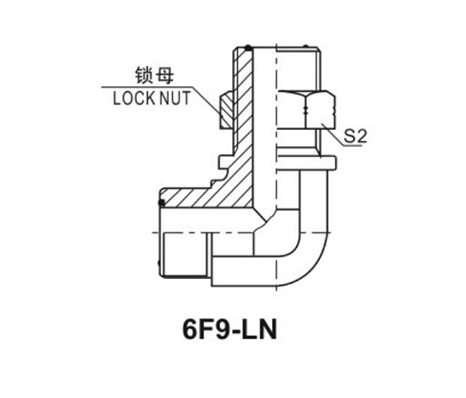

Note:In case if you are interested to order the adapter with lock nut,please insert suffix “LN” after our part NO.,for example 6F9-16LN，The lock nut NO. is 8F. |
|||||||||
