PART NO. |
THREAD |
O-RING |

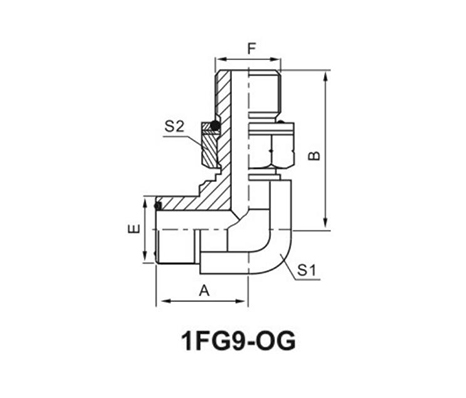

DIMENSIONS |
|||||
|
E |
F |
E |
F |
A |
B |
S1 |
S2 |
|
|
1FG9-04-020G |
9/16"X18 |
G1/8"X28 |
O011 |
O011 |
23 |
29 |
14 |
14 |
|
1FG9-04OG |
9/16"X18 |
G1/4"X19 |
O011 |
O111 |
23 |
31.3 |
14 |
19 |
|
1FG9-04-060G |
9/16"X18 |
G3/8"X19 |
O011 |
O113 |
24 |
35.8 |
16 |
22 |
|
1FG9-06-040G |
11/16"X16 |
G1/4"X19 |
O012 |
O111 |
27 |
33.5 |
19 |
19 |
|
1FG9-06OG |
11/16"X16 |
G3/8"X19 |
O012 |
O113 |
27 |
36.8 |
19 |
22 |
|
1FG9-06-080G |
11/16”X16 |
G1/2"X14 |
O012 |
O115 |
29 |
43.2 |
22 |
27 |
|
1FG9-08-060G |
13/16"X16 |
G3/8"X19 |
O014 |
O113 |
31 |
39.5 |
22 |
22 |
|
1FG9-08OG |
13/16"X16 |
G1/2"X14 |
O014 |
O115 |
31 |
43.2 |
22 |
27 |
|
1FG9-10-080G |
1"X14 |
G1/2"X14 |
O016 |
O115 |
36.5 |
46.5 |
27 |
27 |
|
1FG9-10-12OG |
1"X14 |
G3/4"X14 |
O016 |
O119 |
36.5 |
49.3 |
27 |
32 |
|
1FG9-12-08OG |
1.3/16"X12 |
G1/2"X14 |
O018 |
O115 |
40.3 |
47.5 |
30 |
27 |
|
1FG9-120G |
1.3/16"X12 |
G3/4"X14 |
O018 |
O119 |
40.3 |
52 |
30 |
32 |
|
1FG9-12-160G |
1.3/16"X12 |
G1"X11 |
O018 |
O217 |
42.5 |
53 |
33 |
41 |
|
1FG9-16-120G |
1.7/16"X12 |
G3/4"X14 |
O021 |
O119 |
44.5 |
56 |
36 |
32 |
|
1FG9-160G |
1.7/16"X12 |
G1"X11 |
O021 |
O217 |
44.5 |
56 |
36 |
41 |
|
1FG9-20-16OG |
1.11/16"X12 |
G1"X11 |
O025 |
O217 |
47.5 |
60 |
41 |
41 |
|
1FG9-20OG |
1.11/16"X12 |
G1.1/4"X11 |
O025 |
O222 |
47.5 |
60 |
41 |
50 |
|
1FG9-240G |
2"X12 |
G1.1/2"X11 |
O029 |
O224 |
51.5 |
65.5 |
50 |
55 |
|
Note:F end is connected with DIN 3852 port. |
||||||||
