PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||||||
|
E |
F |
E |
F |
A |
B |
S1 |
S2 |
|
|
|

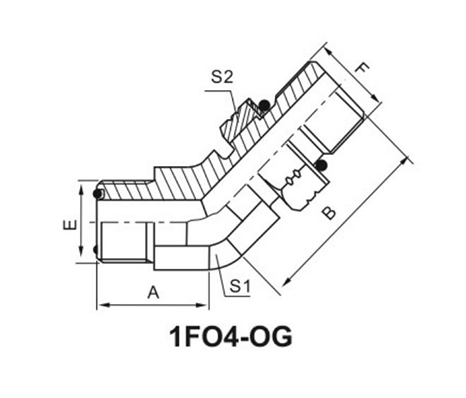

1FO4-04OG |
9/16"X18 |
7/16"X20 |
O011 |
O904 |
18.3 |
26 |
14 |
17 |
|
|
1F04-04-060G |
9/16"X18 |
9/16"X18 |
O011 |
O906 |
18.3 |
28 |
14 |
19 |
|
|
1F04-06-040G |
11/16"X16 |
7/16"X20 |
O012 |
O904 |
20.5 |
27.3 |
19 |
17 |
|
|
1FO4-06OG |
11/16”X16 |
9/16"X18 |
O012 |
O906 |
20.5 |
29.5 |
19 |
19 |
|
|
1F04-06-080G |
11/16"X16 |
3/4"X16 |
O012 |
O908 |
20.5 |
32.5 |
19 |
24 |
|
|
1F04-08-060G |
13/16"X16 |
9/16"X18 |
O014 |
O906 |
24 |
30.8 |
22 |
19 |
|
|
1FO4-08OG |
13/16"X16 |
3/4"X16 |
O014 |
O908 |
24 |
34 |
22 |
24 |
|
|
1F04-08-100G |
13/16"X16 |
7/8"X14 |
O014 |
O910 |
24 |
39.5 |
22 |
27 |
|
|
1FO4-08-12OG |
13/16"X16 |
1.1/16"X12 |
O014 |
O912 |
25.5 |
44 |
27 |
32 |
|
|
1F04-10-080G |
1"X14 |
3/4"X16 |
O016 |
O908 |
28 |
34 |
27 |
24 |
|
|
1FO4-10OG |
1"X14 |
7/8"X14 |
O016 |
O910 |
28 |
41.5 |
27 |
27 |
|
|
1FO4-10-12OG |
1"X14 |
1.1/16"X12 |
O016 |
O912 |
28 |
44 |
27 |
32 |
|
|
1FO4-12-10OG |
1.3/16"X12 |
7/8"X14 |
O018 |
O910 |
30.7 |
42 |
30 |
27 |
|
|
1F04-120G |
1.3/16"X12 |
1.1/16"X12 |
O018 |
O912 |
30.7 |
45.5 |
30 |
32 |
|
|
1F04-12-160G |
1.3/16"X12 |
1.5/16"X12 |
O018 |
O916 |
32.5 |
47.9 |
36 |
41 |
|
|
1F04-16-120G |
1.7/16"X12 |
1.1/16"X12 |
O021 |
O912 |
33 |
47.9 |
36 |
32 |
|
|
1F04-160G |
1.7/16"X12 |
1.5/16"X12 |
O021 |
O916 |
33 |
47.9 |
36 |
41 |
|
|
1FO4-16-20OG |
1.7/16"X12 |
1.5/8"X12 |
O021 |
O920 |
35.5 |
48.5 |
41 |
50 |
|
|
1FO4-20OG |
1.11/16"X12 |
1.5/8"X12 |
O025 |
O920 |
35.5 |
48.8 |
41 |
50 |
|
|
1FO4-20-24OG |
1.11/16"X12 |
1.7/8"X12 |
O025 |
O924 |
38 |
51 |
48 |
55 |
|
|
1F04-240G |
2"X12 |
1.7/8"X12 |
O029 |
O924 |
39 |
52 |
50 |
55 |
|
|
Note:F end is connected with ISO 11926-1 port. |
|||||||||
