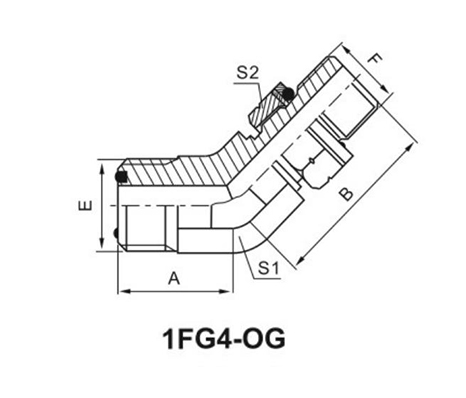

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
|||||
|
E |
F |
E |
F |
A |
B |
S1 |
S2 |
|
|
1FG4-04OG |
9/16"X18 |
G1/4"X19 |
O011 |
O111 |
18.3 |
27 |
14 |
19 |
|
1FG4-04-020G |
9/16"X18 |
G1/8"X28 |
O011 |
O011 |
18.3 |
24.8 |
14 |
14 |
|
1FG4-04-060G |
9/16"X18 |
G3/8"X19 |
O011 |
O113 |
18 |
30 |
16 |
22 |
|
1FG4-06OG |
11/16"X16 |
G3/8"X19 |
O012 |
O113 |
20.5 |
31 |
19 |
22 |
|
1FG4-06-040G |
11/16"X16 |
G1/4"X19 |
O012 |
O111 |
20.5 |
28 |
19 |
19 |
|
1FG4-06-080G |
11/16"X16 |
G1/2"X14 |
O012 |
O115 |
22 |
36 |
22 |
27 |
|
1FG4-08OG |
13/16"X16 |
G1/2"X14 |
O014 |
O115 |
24 |
36 |
22 |
27 |
|
1FG4-08-060G |
13/16"X16 |
G3/8"X19 |
O014 |
O113 |
24 |
32 |
22 |
22 |
|
1FG4-10-080G |
1"X14 |
G1/2"X14 |
O016 |
O115 |
28 |
37.5 |
27 |
27 |
|
1FG4-10-12OG |
1"X14 |
G3/4"X14 |
O016 |
O119 |
28 |
42 |
27 |
32 |
|
1FG4-120G |
1.3/16"X12 |
G3/4"X14 |
O018 |
O119 |
30.7 |
42.5 |
30 |
32 |
|
1FG4-12-08OG |
1.3/16"X12 |
G1/2"X14 |
O018 |
O115 |
30.7 |
38.5 |
30 |
27 |
|
1FG4-12-160G |
1.3/16"X12 |
G1"X11 |
O018 |
O217 |
31.5 |
44 |
33 |
41 |
|
1FG4-160G |
1.7/16"X12 |
G1"X11 |
O021 |
O217 |
33 |
44.5 |
36 |
41 |
|
1FG4-16-120G |
1.7/16"X12 |
G3/4"X14 |
O021 |
O119 |
33 |
44.5 |
36 |
32 |
|
1FG4-20OG |
1.11/16"X12 |
G1.1/4"X11 |
O025 |
O222 |
35.5 |
47.5 |
41 |
50 |
|
Note:F end is connected with DIN 3852 port. |
||||||||
