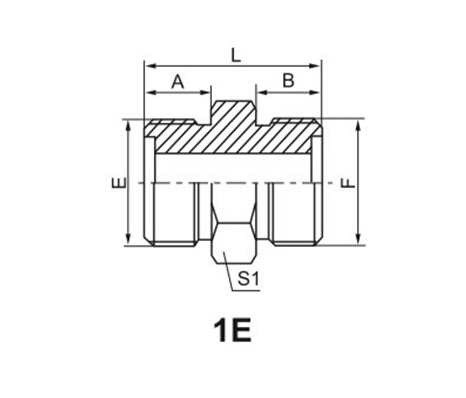

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||||||
|
E、F |
|
E、F |
|
A |
B |
L |
S1 |
|
|
|
1E-12 |
M12X1.25 |
|
8X1.9 |
|
11 |
11 |
28 |
14 |
|
|
1E-14 |
M14X1.5 |
|
10X1.9 |
|
11 |
11 |
28 |
17 |
|
|
1E-16 |
M16X1.5 |
|
11X1.9 |
|
11 |
11 |
28 |
17 |
|
|
1E-18 |
M18X1.5 |
|
13X1.9 |
|
11 |
11 |
28 |
19 |
|
|
1E-22 |
M22X1.5 |
|
16X2.4 |
|
12 |
12 |
32 |
24 |
|
|
1E-27 |
M27X1.5 |
|
20X2.4 |
|
13 |
13 |
36 |
30 |
|
|
1E-30 |
M30X1.5 |
|
24X2.4 |
|
14 |
14 |
39 |
32 |
|
|
1E-36 |
M36X2 |
|
30X3.1 |
|
16 |
16 |
43 |
38 |
|
|
1E-39 |
M39X2 |
|
32X3.1 |
|
18 |
18 |
49 |
41 |
|
|
1E-42 |
M42X2 |
|
35X3.1 |
|
20 |
20 |
53 |
46 |
|
|
1E-45 |
M45X2 |
|
38X3.1 |
|
21 |
21 |
55 |
46 |
|
|
1E-52 |
M52X2 |
|
40X3.1 |
|
22 |
22 |
59 |
55 |
|
|
1E-60 |
M60X2 |
|
45X3.1 |
|
24 |
24 |
65 |
65 |
|
|
1E-64 |
M64X2 |
|
50X3.1 |
|
27 |
27 |
71 |
70 |
|
|
Note:The parameter of O-ring is ring outside diameter and ring width |
|||||||||
