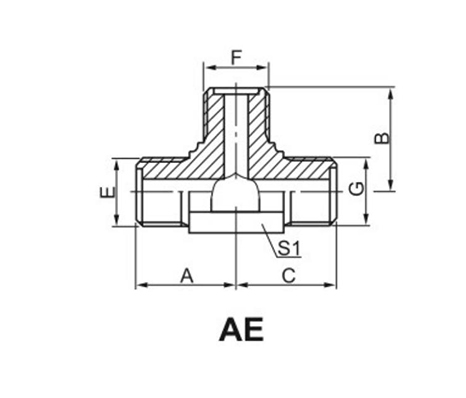

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||||||
|
E、F、G |
|
E、 F、 G |
|
A |
B |
C |
S1 |
|
|
|
AE-14 |
M14X1.5 |
|
10X1.9 |
|
22.5 |
22.5 |
22.5 |
14 |
|
|
AE-16 |
M16X1.5 |
|
11X1.9 |
|
24 |
24 |
24 |
17 |
|
|
AE-18 |
M18X1.5 |
|
13X1.9 |
|
26 |
26 |
26 |
19 |
|
|
AE-22 |
M22X1.5 |
|
16X2.4 |
|
29 |
29 |
29 |
22 |
|
|
AE-27 |
M27X1.5 |
|
20X2.4 |
|
32.5 |
32.5 |
32.5 |
27 |
|
|
AE-30 |
M30X1.5 |
|
24X2.4 |
|
35.5 |
35.5 |
35.5 |
30 |
|
|
AE-36 |
M36X2 |
|
30X3.1 |
|
42 |
42 |
42 |
36 |
|
|
AE-39 |
M39X2 |
|
32X3.1 |
|
47.5 |
47.5 |
47.5 |
41 |
|
|
AE-42 |
M42X2 |
|
35X3.1 |
|
49.5 |
49.5 |
49.5 |
41 |
|
|
AE-45 |
M45X2 |
|
38X3.1 |
|
52.5 |
52.5 |
52.5 |
46 |
|
|
AE-52 |
M52X2 |
|
40X3.1 |
|
57 |
57 |
57 |
50 |
|
|
Note:The parameter of O-ring is ring outside diameter and ring width |
|||||||||
