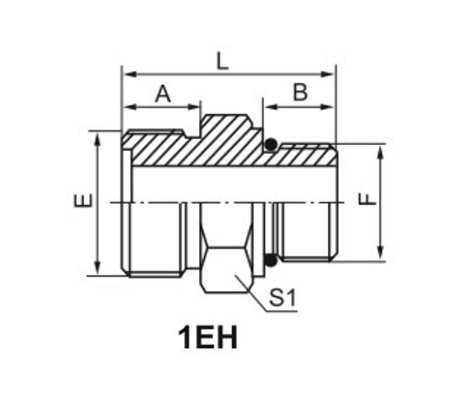

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||||||
|
E |
F |
E |
F |
A |
B |
L |
S1 |
|
|
|
1EH-12-10 |
M12X1.25 |
M10X1 |
8X1.9 |
O08.1X1.6 |
11 |
9.5 |
28 |
14 |
|
|
1EH-14-12 |
M14X1.5 |
M12X1.5 |
10X1.9 |
O09.3X2.4 |
11 |
11 |
28 |
17 |
|
|
1EH-16-14 |
M16X1.5 |
M14X1.5 |
11X1.9 |
O11.3X2.4 |
11 |
11 |
28 |
19 |
|
|
1EH-18-16 |
M18X1.5 |
M16X1.5 |
13X1.9 |
O13.3X2.4 |
11 |
11.5 |
31.5 |
22 |
|
|
1EH-22-18 |
M22X1.5 |
M18X1.5 |
16X2.4 |
O15.3X2.4 |
12 |
12.5 |
34.5 |
24 |
|
|
1EH-27-22 |
M27X1.5 |
M22X1.5 |
20X2.4 |
O19.3X2.4 |
13 |
15 |
38 |
30 |
|
|
1EH-30-27 |
M30X1.5 |
M27X2 |
24X2.4 |
O23.5X3.0 |
14 |
18.5 |
43.5 |
32 |
|
|
1EH-36-33 |
M36X2 |
M33X2 |
30X3.1 |
O29.5X3.0 |
16 |
18.5 |
47.5 |
41 |
|
|
1EH-39-33 |
M39X2 |
M33X2 |
32X3.1 |
O29.5X3.0 |
18 |
18.5 |
49.5 |
41 |
|
|
1EH-42-42 |
M42X2 |
M42X2 |
35X3.1 |
O38.5X3.0 |
20 |
19 |
54 |
50 |
|
|
1EH*45*42 |
M45X2 |
M42X2 |
38X3.1 |
O38.5X3.0 |
21 |
19 |
54 |
50 |
|
|
1EH-52-48 |
M52X2 |
M48X2 |
40X3.1 |
O44.5X3.0 |
22 |
21.5 |
58.5 |
55 |
|
|
Note:1 The parameters of E end O-ring are ring outside diameter and ring width. 2 F end is fit for ISO 6149-1 port. |
|||||||||
