STRAIGHT FITTINGS

+86-13967892895 Contact Us
  • Description
  • Additional Information

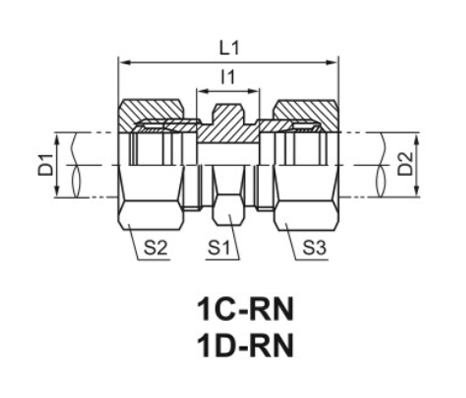

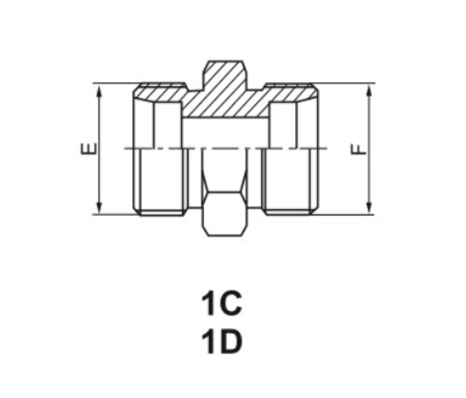

  • PART NO. THREAD TUBEO.D. DIMENSIONS

    MPa
    E F D1 D2 L1 L1 S1 S2 S3
    1C-12 M12×1.5 M12×1.5 6 6 10 39 12 14 14 31.5
    Light series
    L
    1C-14 M14×1.5 M14×1.5 8 8 11 40 14 17 17
    1C-16 M16×1.5 M16×1.5 10 10 13 42 17 19 19
    1C-18 M18×1.5 M18×1.5 12 12 14 43 19 22 22
    1C-22 M22×1.5 M22×1.5 15 15 16 46 24 27 27
    1C-26 M26×1.5 M26×1.5 18 18 16 48 27 32 32
    1C-30 M30×2 M30×2 22 22 20 52 32 36 36
    16
    Light series
    L
    1C-36 M36×2 M36×2 28 28 21 54 41 41 41
    1C-45 M45×2 M45×2 35 35 20 63 46 50 50
    1C-52 M52×2 M52×2 42 42 21 66 55 60 60
    1D-14 M14X1.5 M14X1.5 6 6 16 45 14 17 17
    63
    Heavy series
    S
    1D-16 M16X1.5 M16X1.5 8 8 18 47 17 19 19
    1D-18 M18X1.5 M18X1.5 10 10 17 49 19 22 22
    1D-20 M20X1.5 M20X1.5 12 12 19 51 22 24 24
    1D-22 M22X1.5 M22X1.5 14 14 22 57 24 27 27
    1D-24 M24X1.5 M24X1.5 16 16 21 57 27 30 30
    40
    Heavy series
    S
    1D-30 M30X2 M30X2 20 20 23 66 32 36 36
    1D-36 M36X2 M36X2 25 25 26 74 41 46 46
    1D-42 M42X2 M42X2 30 30 27 80 46 50 50
    1D-52 M52X2 M52X2 38 38 29 90 55 60 60 31.5Heavy seriesS
    Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert
    suffix“RN”after our part NO.,for example 1C-30RN.
