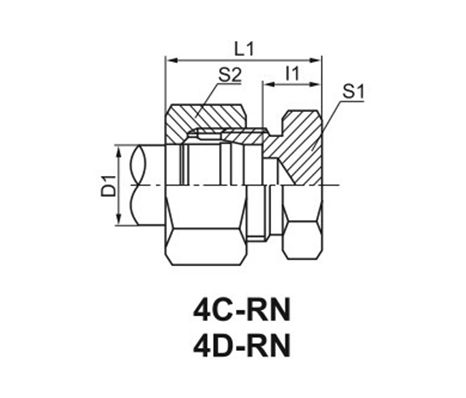

PART NO. |
THREAD |
TUBE O.D. |
DIMENSIONS |
MPa |
|||||
|
E |
D1 |
I1 |
L1 |
S1 |
S2 |
|
|
||
|
4C-12 |
M12X1.5 |
6 |
7 |
22 |
12 |
14 |
|
|
31.5 Light series L |
|
4C-14 |
M14X1.5 |
8 |
8 |
23 |
14 |
17 |
|
|
|
|
4C-16 |
M16X1.5 |
10 |
9 |
24 |
17 |
19 |
|
|
|
|
4C-18 |
M18X1.5 |
12 |
10 |
25 |
19 |
22 |
|
|
|
|
4C-22 |
M22X1.5 |
15 |
11 |
26 |
24 |
27 |
|
|
|
|
4C-26 |
M26X1.5 |
18 |
11.5 |
28 |
27 |
32 |
|
|
|
|
4C-30 |
M30X2 |
22 |
13.5 |
30 |
32 |
36 |
|
|
16 Light series L |
|
4C-36 |
M36X2 |
28 |
14.5 |
31 |
41 |
41 |
|
|
|
|
4C-45 |
M45X2 |
35 |
14.5 |
36 |
46 |
50 |
|
|
|
|
4C-52 |
M52X2 |
42 |
16 |
39 |
55 |
60 |
|
|
|
|
4D-14 |
M14X1.5 |
6 |
11 |
26 |
14 |
17 |
|
|
63 Heavy series S |
|
4D-16 |
M16X1.5 |
8 |
13 |
28 |
17 |
19 |
|
|
|
|
4D-18 |
M18X1.5 |
10 |
12.5 |
29 |
19 |
22 |
|
|
|
|
4D-20 |
M20X1.5 |
12 |
14.5 |
31 |
22 |
24 |
|
|
|
|
4D-22 |
M22X1.5 |
14 |
16 |
34 |
24 |
27 |
|
|
|
|
4D-24 |
M24X1.5 |
16 |
15.5 |
34 |
27 |
30 |
|
|
40 Heavy series S |
|
4D-30 |
M30X2 |
20 |
17.5 |
39 |
32 |
36 |
|
|
|
|
4D-36 |
M36X2 |
25 |
20 |
44 |
38 |
46 |
|
|
|
|
4D-42 |
M42X2 |
30 |
20.5 |
47 |
46 |
50 |
|
|
|
|
4D-52 |
M52X2 |
38 |
23 |
54 |
55 |
60 |
|
|
31.Heavy seriesS |
|
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix “RN” after our part NO.,for example 4C-30RN. |
|||||||||
