PART NO. |
THREAD |
TUBE O.D. |
SEAL |
DIMENSIONS |
MPa |
||||||
|
E |
F |
B |
I1 |
L1 |
S1 |
S2 |
|
||||
|

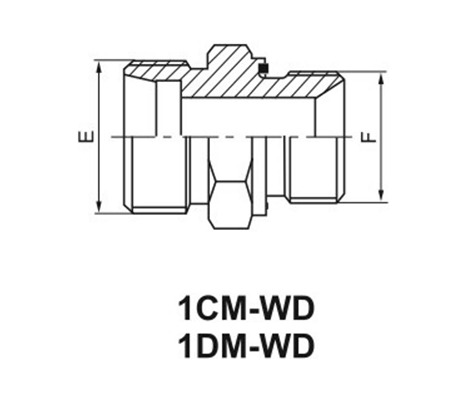

1CM-12-10WD |
M12X1.5 |
M10X1 |
6 |
WD-B02 |
8 |
8.5 |
23 |
14 |
14 |
|
31.5 Light series L |
|
1CM-14-12WD |
M14X1.5 |
M12X1.5 |
8 |
WD-M12 |
12 |
10 |
25 |
17 |
17 |
|
|
|
1CM-16-12WD |
M16X1.5 |
M12X1.5 |
10 |
WD-M12 |
12 |
11 |
25 |
17 |
19 |
|
|
|
1CM-16-14WD |
M16X1.5 |
M14X1.5 |
10 |
WD-B04 |
12 |
11 |
26 |
19 |
19 |
|
|
|
1CM-16-18WD |
M16X1.5 |
M18X1.5 |
10 |
WD-M18 |
12 |
12.5 |
27 |
24 |
19 |
|
|
|
1CM-18-16WD |
M18X1.5 |
M16X1.5 |
12 |
WD-M16 |
12 |
12.5 |
27 |
22 |
22 |
|
|
|
1CM-18WD |
M18X1.5 |
M18X1.5 |
12 |
WD-M18 |
12 |
12.5 |
27 |
24 |
22 |
|
|
|
1CM-18-22WD |
M18X1.5 |
M22X1.5 |
12 |
WD-M22 |
14 |
14 |
29 |
27 |
22 |
|
|
|
1CM-22-18WD |
M22X1.5 |
M18X1.5 |
15 |
WD-M18 |
12 |
13.5 |
29 |
24 |
27 |
|
|
|
1CM-22WD |
M22X1.5 |
M22X1.5 |
15 |
WD-M22 |
14 |
15 |
30 |
27 |
27 |
|
|
|
1CM-26-22WD |
M26X1.5 |
M22X1.5 |
18 |
WD-M22 |
14 |
14.5 |
31 |
27 |
32 |
|
|
|
1CM-30-26WD |
M30X2 |
M26X1.5 |
22 |
WD-B12 |
16 |
16.5 |
33 |
32 |
36 |
|
16 Light series L |
|
1CM-30-27WD |
M30X2 |
M27X1.5 |
22 |
WD-B12 |
16 |
16.5 |
33 |
32 |
36 |
|
|
|
1CM-36-33WD |
M36X2 |
M33X2 |
28 |
WD-B16 |
18 |
17.5 |
34 |
41 |
41 |
|
|
|
1CM-45-42WD |
M45X2 |
M42X2 |
35 |
WD-B20 |
20 |
17.5 |
39 |
50 |
50 |
|
|
|
1CM-52-48WD |
M52X2 |
M48X2 |
42 |
WD-B24 |
22 |
19 |
42 |
55 |
60 |
|
|
|
1DM-14-12WD |
M14X1.5 |
M12X1.5 |
6 |
WD-M12 |
12 |
13 |
28 |
17 |
17 |
|
63 Heavy series S |
|
1DM-16-14WD |
M16X1.5 |
M14X1.5 |
8 |
WD-B04 |
12 |
15 |
30 |
19 |
19 |
|
|
|
1DM-18-16WD |
M18X1.5 |
M16X1.5 |
10 |
WD-M16 |
12 |
15 |
31 |
22 |
22 |
|
|
|
1DM-20-18WD |
M20X1.5 |
M18X1.5 |
12 |
WD-M18 |
12 |
17 |
33 |
24 |
24 |
|
|
|
1DM-22-20WD |
M22X1.5 |
M20X1.5 |
14 |
WD-M20 |
14 |
19 |
37 |
27 |
27 |
|
|
|
1DM-24-22WD |
M24X1.5 |
M22X1.5 |
16 |
WD-M22 |
14 |
18.5 |
37 |
27 |
30 |
|
40 Heavy series S |
|
1DM-30-27WD |
M30X2 |
M27X2 |
20 |
WD-B12 |
16 |
20.5 |
42 |
32 |
36 |
|
|
|
1DM-36-33WD |
M36X2 |
M33X2 |
25 |
WD-B16 |
18 |
23 |
47 |
41 |
46 |
|
|
|
1DM-42WD |
M42X2 |
M42X2 |
30 |
WD-B20 |
20 |
23.5 |
50 |
50 |
50 |
|
|
|
1DM-52-48WD |
M52X2 |
M48X2 |
38 |
WD-B24 |
22 |
26 |
57 |
55 |
60 |
|
31.5Heavy seriesS |
|

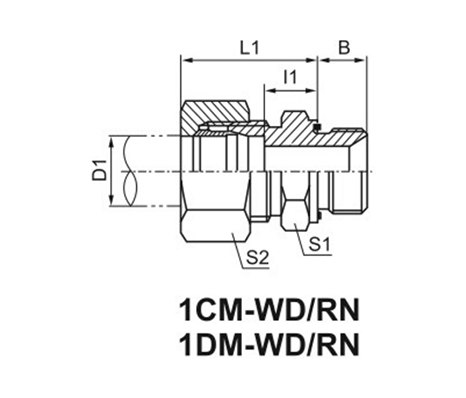

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix “RN” after our part NO.,for example 1DM-20-18WD/RN. |
|||||||||||
