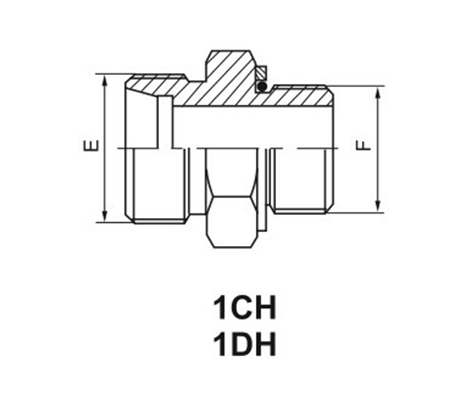

PART NO.

THREAD

TUBE O.D.

O RING

DIMENSIONS

MPa

E

F

B

I1

L1

S1

S2

1CH-12-10

M12X1.5

M10X1

6

008.1X1.6

8.5

9.5

23

14

14

31.5

Light series

L

1CH-14

M14X1.5

M14X1.5

8

011.3X2.4

11

10

25

19

17

1CH-14-12

M14X1.5

M12X1.5

8

009.3X2.4

11

10

25

17

17

1CH-16-14

M16X1.5

M14X1.5

10

011.3X2.4

11

13

26

19

19

1CH-18-14

M18X1.5

M14X1.5

12

011.3X2.4

11

11

25.5

19

22

1CH-14-18

M14X1.5

M18X1.5

8

015.3X2.4

12.5

11.5

26.5

24

17

1CH-16

M16X1.5

M16X1.5

10

013.3X2.4

11.5

13

28

22

19

1CH-16-18

M16X1.5

M18X1.5

10

015.3X2.4

12.5

12.5

28

24

19

1CH-18-16

M18X1.5

M16X1.5

12

013.3X2.4

11.5

12

27

22

22

1CH-22-16

M22X1.5

M16X1.5

12

013.3X2.4

11.5

13.5

29.5

24

27

1CH-22-18

M22X1.5

M18X1.5

15

015.3X2.4

12.5

13.5

29

24

27

1CH-16-22

M16X1.5

M22X1.5

10

019.3X2.4

13

14

29.5

27

19

1CH-22-20

M22X1.5

M20X1.5

15

017.3X2.4

12

15

30.5

27

27

1 CH-22

M22X1.5

M22X1.5

12

019.3X2.4

13

15

31

27

27

1CH-26-22

M26X1.5

M22X1.5

18

019.3X2.4

13

14.5

31

27

32

1 CH-26

M26X1.5

M26X1.5

18

023.5X3.0

13.5

13.5

31

32

32

1CH-26-27

M26X1.5

M27X2

18

023.5X3.0

16

14.5

32

32

32

1CH-26-33

M26X1.5

M33X2

18

029.5X3.0

16

15.5

33

41

32

1CH-30-22

M30X2

M22X1.5

22

019.3X2.4

13

17.5

33

32

41

16

Light series

L

1CH-30-27

M30X2

M27X2

22

023.5X3.0

16

16.5

33

32

36

1 CH-30

M30X2

M30X2

22

026.5X3.0

16

17.5

33

36

36

1CH-36-27

M36X2

M27X2

28

023.5X3.0

16

17.5

34

41

41

1CH-36-33

M36X2

M33X2

28

029.5X3.0

16

17.5

34

41

41

1CH-36-42

M36X2

M42X2

28

038.5X3.0

16

18.5

35

50

41

1CH-45-33

M45X2

M33X2

35

029.5X3.0

16

17.5

37

46

50

1CH-45-42

M45X2

M42X2

35

038.5X3.0

16

17.5

37

50

50

1CH-52-48

M52X2

M48X2

42

044.5X3.0

17.5

19

55

60

1DH-14

M14X1.5

M14X1.5

6

011.3X2.4

11

15

28

19

17

63

Heavy series

S

1DH-14-12

M14X1.5

M12X1.5

6

009.3X2.4

11

13

28

17

17

1DH-16-14

M16X1.5

M14X1.5

8

011.3X2.4

11

15

30

19

19

1DH-18-16

M18X1.5

M16X1.5

10

013.3X2.4

11.5

15

31

22

22

1DH-20-14

M20X1.5

M14X1.5

12

011.3X2.4

11

15

31

22

24

1DH-20-16

M20X1.5

M16X1.5

12

013.3X2.4

11.5

15

31

22

24

63

Heavy series

S

1DH-20-18

M20X1.5

M18X1.5

12

015.3X2.4

12.5

17

33

24

24

1DH-20-22

M20X1.5

M22X1.5

12

019.3X2.4

13

17.5

35

27

30

1DH-24-22

M24X1.5

M22X1.5

16

019.3X2.4

13

18.5

37

27

30

40

Heavy series

S

1DH-30

M30X2

M30X2

20

026.5X3.0

16

20.5

42

36

36

1DH-30-27

M30X2

M27X2

20

023.5X3.0

16

20.5

42

32

36

1DH-30-33

M30X2

M33X2

20

029.5X3.0

16

22.5

42

41

36

1DH-36-27

M36X2

M27X2

25

023.5X3.0

16

23

47

41

46

1DH-36-33

M36X2

M33X2

25

029.5X3.0

16

23

47

41

46

1DH-42

M42X2

M42X2

30

038.5X3.0

16

23.5

50

50

50

1DH-42-48

M42X2

M48X2

30

044.5X3.0

17.5

26.5

52

55

50

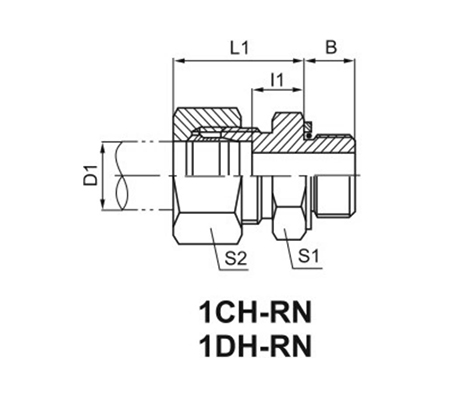

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut.it is necessary to insert

suffix “RN” after our part NO.,for example 1DH-20-18RN.
