PART NO. |
THREAD |
TUBE O.D. |
DIMENSIONS |
MPa |
||||||
|
E |
F |
D1 |
B |
I1 |
L1 |
S1 |
S2 |
|
||
|
1CJ-12-04 |
M12X 1.5 |
7/16”X20 |
6 |
14 |
9 |
24 |
14 |
14 |
|
31.5 Light series L |
|
1CJ-14-04 |
M14X1.5 |
7/16"X20 |
8 |
14 |
8 |
23 |
15 |
17 |
|
|
|
1CJ-14-06 |
M14X1.5 |
9/16"X18 |
8 |
14.1 |
8 |
23 |
15 |
17 |
|
|
|
1CJ-16-06 |
M16X1.5 |
9/16"X18 |
10 |
14.1 |
9 |
24 |
17 |
19 |
|
|
|
1CJ-18-06 |
M18X1.5 |
9/16"X18 |
12 |
14.1 |
10 |
25 |
19 |
22 |
|
|
|
1CJ-18-08 |
M18X1.5 |
3/4"X16 |
12 |
16.7 |
10 |
25 |
22 |
22 |
|
|
|
1CJ-22-08 |
M22X1.5 |
3/4”X16 |
15 |
16.7 |
10.8 |
26 |
24 |
27 |
|
|
|
1CJ-22-10 |
M22X1.5 |
7/8"X14 |
15 |
19.3 |
11 |
26 |
24 |
27 |
|
|
|
1CJ-26-10 |
M26X1.5 |
7/8”X14 |
18 |
19.3 |
11.5 |
28 |
27 |
32 |
|
|
|
1CJ-26-12 |
M26X1.5 |
1.1/16"X12 |
18 |
21.9 |
11.6 |
28 |
30 |
32 |
|
|
|
1CJ-30-12 |
M30X2 |
1.1/16"X12 |
22 |
21.9 |
13.5 |
30 |
32 |
36 |
|
16 Light series L |
|
1CJ-36-16 |
M36X2 |
1.5/16"X12 |
28 |
23.1 |
14.5 |
31 |
41 |
41 |
|
|
|
1CJ-45-20 |
M45X2 |
1.5/8”X12 |
35 |
24.3 |
14.5 |
36 |
46 |
50 |
|
|
|
1CJ-52-20 |
M52X2 |
1.5/8"X12 |
42 |
24.3 |
16 |
39 |
55 |
60 |
|
|
|
1CJ-52-24 |
M52X2 |
1.7/8”X12 |
42 |
27.5 |
16 |
39 |
55 |
60 |
|
|
|
1DJ-14-04 |
M14X1.5 |
7/16"X20 |
6 |
14 |
11 |
26 |
14 |
14 |
|
63 Heavy series S |
|
1DJ-16-04 |
M16X1.5 |
7/16”X20 |
8 |
14 |
13 |
28 |
17 |
19 |
|
|
|
1DJ-16-06 |
M16X1.5 |
9/16"X18 |
8 |
14.1 |
12.9 |
28 |
17 |
34 |
|
|
|
1DJ-18-04 |
M18X1.5 |
7/16”X20 |
10 |
14 |
12.5 |
29 |
19 |
22 |
|
|
|
1DJ-18-06 |
M18X1.5 |
9/16"X18 |
10 |
14.1 |
12.5 |
29 |
19 |
22 |
|
|
|
1DJ-20-06 |
M20X1.5 |
9/16"X18 |
12 |
14.1 |
14.5 |
31 |
22 |
24 |
|
|
|
1DJ-20-08 |
M20X1.5 |
3/4”X16 |
12 |
16.7 |
14.3 |
31 |
22 |
24 |
|
|
|
1DJ-22-08 |
M22X1.5 |
3/4"X16 |
14 |
16.7 |
16 |
34 |
24 |
27 |
|
|
|
1DJ-24-08 |
M24X1.5 |
3/4"X16 |
16 |
16.7 |
15.5 |
34 |
27 |
30 |
|
40 Heavy series S |
|
1DJ-24-10 |
M24X1.5 |
7/8”X14 |
16 |
19.3 |
15.5 |
34 |
27 |
30 |
|
|
|
1DJ-30-12 |
M30X2 |
1.1/16"X12 |
20 |
21.9 |
17.5 |
39 |
32 |
36 |
|
|
|
1DJ-36-12 |
M36X2 |
1.1/16"X12 |
25 |
21.9 |
19 |
43 |
38 |
46 |
|
|
|
1DJ-36-16 |
M36X2 |
1.5/16”X12 |
25 |
23.1 |
19 |
43 |
38 |
46 |
|
|
|
1DJ-42-20 |
M42X2 |
1.5/8”X12 |
30 |
24.3 |
20.5 |
47 |
46 |
50 |
|
|
|
1DJ-52-24 |
M52X2 |
1.7/8”X12 |
38 |
27.5 |
23 |
54 |
55 |
60 |
|
31.5Heavy seriesS |
|

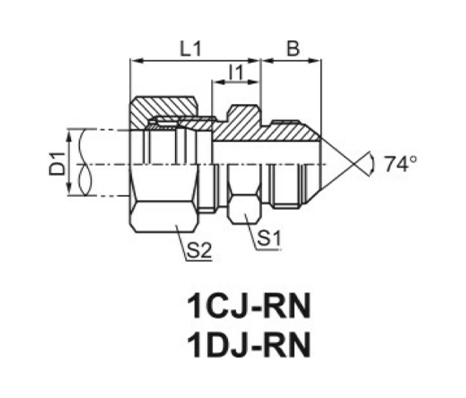

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix “RN” after our part NO.,for example 1DJ-20-08RN. |
||||||||||
