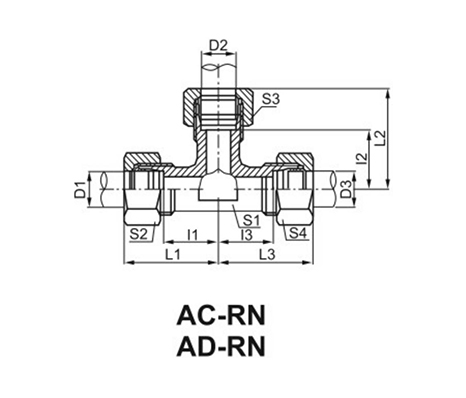

PART NO. |
THREAD |
TUBE O.D. |
DIMENSIONS |
MPa |
||||
|
E,F,G |
D1,D2,D3 |
I1,I2,I3 |
L1，L2，L3 |
S1 |
S2，S3，S4 |
|
||
|
AC-08 |
M8X1 |
4 |
11 |
21 |
9 |
10 |
|
10 Extra light series LL |
|
AC-10 |
M10X1 |
5 |
9.5 |
21 |
9 |
12 |
|
|
|
AC-10A |
M10X1 |
6 |
9.5 |
21 |
9 |
12 |
|
|
|
AC-12A |
M12X1 |
8 |
11.5 |
23 |
12 |
14 |
|
|
|
AC-12 |
M12X1.5 |
6 |
12 |
27 |
12 |
14 |
|
25 Light series L |
|
AC-14 |
M14X1.5 |
8 |
14 |
29 |
12 |
17 |
|
|
|
AC-16 |
M16X1.5 |
10 |
15 |
30 |
14 |
19 |
|
|
|
AC-18 |
M18X1.5 |
12 |
17 |
32 |
17 |
22 |
|
|
|
AC-22 |
M22X1.5 |
15 |
21 |
36 |
19 |
27 |
|
|
|
AC-26 |
M26X1.5 |
18 |
23.5 |
40 |
24 |
32 |
|
|
|
AC-30 |
M30X2 |
22 |
27.5 |
44 |
27 |
36 |
|
16 Light series L |
|
AC-36 |
M36X2 |
28 |
30.5 |
47 |
36 |
41 |
|
|
|
AC-45 |
M45X2 |
35 |
34.5 |
56 |
41 |
50 |
|
|
|
AC-52 |
M52X2 |
42 |
40 |
63 |
50 |
60 |
|
|
|
AD-14 |
M14X1.5 |
6 |
16 |
31 |
12 |
17 |
|
63 Heavy series S |
|
AD-16 |
M16X1.5 |
8 |
17 |
32 |
14 |
19 |
|
|
|
AD-18 |
M18X1.5 |
10 |
17.5 |
34 |
17 |
22 |
|
|
|
AD-20 |
M20X1.5 |
12 |
21.5 |
38 |
17 |
24 |
|
|
|
AD-22 |
M22X1.5 |
14 |
22 |
40 |
19 |
27 |
|
|
|
AD-24 |
M24X1.5 |
16 |
24.5 |
43 |
24 |
30 |
|
40 Heavy series S |
|
AD-30 |
M30X2 |
20 |
26.5 |
48 |
27 |
36 |
|
|
|
AD-36 |
M36X2 |
25 |
30 |
54 |
36 |
46 |
|
|
|
AD-42 |
M42X2 |
30 |
35.5 |
62 |
41 |
50 |
|
|
|
AD-52 |
M52X2 |
38 |
41 |
72 |
50 |
60 |
|
31.5Heavy seriesS |
|
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut，it is necessary to insert suffix"RN"after our part NO.，for example AC-22RN. |
||||||||
