BRANCH TEE FITTINGS WITH SWIVEL NUT-YUYAO SHUNDA VALVES & FITTINGS CO., LTD.

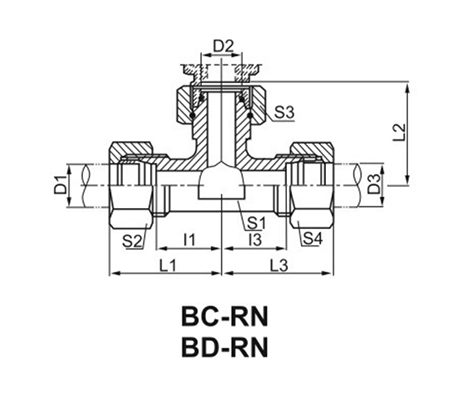

PART NO.	THREAD		TUBE O.D.		DIMENSIONS						MPa
PART NO.	E,G	F	D1,D3	D2	I1,I3	L1,L3	L2	S1	S2,S4	S3	MPa
BC-12	M12X1.5	M12X1.5	6	6	12	27	26	12	14	14	31.5 Light series L
BC-14	M14X1.5	M14X1.5	8	8	14	29	27.5	12	17	17
BC-16	M16X1.5	M16X1.5	10	10	15	30	29	14	19	19
BC-18	M18X1.5	M18X1.5	12	12	17	32	29.5	17	22	22
BC-22	M22X1.5	M22X1.5	15	15	21	36	32.5	19	27	27
BC-26	M26X1.5	M26X1.5	18	18	23.5	40	35.5	24	32	32
BC-30	M30X2	M30X2	22	22	27.5	44	38.5	27	36	36	16 Light series L
BC-36	M36X2	M36X2	28	28	30.5	47	41.5	36	41	41
BC-45	M45X2	M45X2	35	35	34.5	56	51	41	50	50
BC-52	M52X2	M52X2	42	42	40	63	56	50	60	60
BD-14	M14X1.5	M14X1.5	6	6	16	31	27	12	17	17	63 Heavy series S
BD-16	M16X1.5	M16X1.5	8	8	17	32	27.5	14	19	19
BD-18	M18X1.5	M18X1.5	10	10	17.5	34	30	17	22	22
BD-20	M20X1.5	M20X1.5	12	12	21.5	38	31	17	24	24
BD-22	M22X1.5	M22X1.5	14	14	22	40	35	19	27	27
BD-24	M24X1.5	M24X1.5	16	16	24.5	43	36.5	24	30	30	40 Heavy series S
BD-30	M30X2	M30X2	20	20	26.5	48	44.5	27	36	36
BD-36	M36X2	M36X2	25	25	30	54	50	36	46	41
BD-42	M42X2	M42X2	30	30	35.5	62	55	41	50	50
BD-52	M52X2	M52X2	38	38	41	72	63	50	60	60	31.5Heavy seriesS
Note:ln case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix “RN” after our part NO.,for example BC-30RN.
