PART NO. |
THREAD |
FLANGE SIZE |
TUBEO.D. |

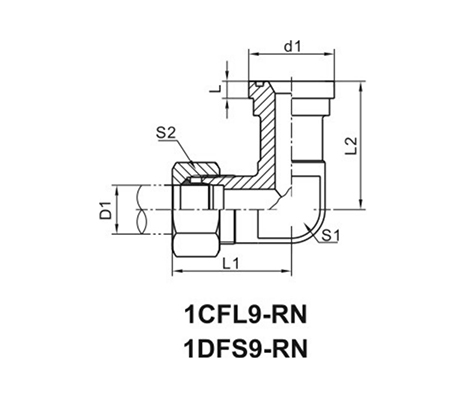

DIMENSIONS |
MPa |
||||||
|
d1 |
I |
I1 |
L1 |
L2 |
S1 |
S2 |
|||||
|
1CFL9-22-08 |
M22X1.5 |
1/2" |
15 |
30.2 |
6.73 |
29 |
44 |
36 |
24 |
27 |
31.5 Light series L |
|
1CFL9-26-12 |
M26X1.5 |
3/4" |
18 |
38.1 |
6.73 |
31.5 |
48 |
42 |
30 |
32 |
|
|
1CFL9-30-12 |
M30X2 |
3/4" |
22 |
38.1 |
6.73 |
33.5 |
50 |
42 |
30 |
36 |
|
|
1CFL9-36-16 |
M36X2 |
1" |
28 |
44.4 |
8 |
36.5 |
53 |
45 |
36 |
41 |
|
|
1CFL9-45-20 |
M45X2 |
1.1/4" |
35 |
50.8 |
8 |
46.5 |
68 |
50 |
41 |
50 |
16 Light series L |
|
1CFL9-52-24 |
M52X2 |
1.1/2" |
42 |
60.3 |
8 |
47 |
70 |
55 |
50 |
60 |
|
|
1DFS9-24-08 |
M24X1.5 |
1/2" |
16 |
31.7 |
7.8 |
29.5 |
48 |
39 |
24 |
30 |
40 Heavy series S |
|
1DFS9-24-12 |
M24X1.5 |
3/4" |
16 |
41.3 |
8.8 |
36.5 |
55 |
48 |
32 |
30 |
|
|
1DFS9-30-12 |
M30X2 |
3/4" |
20 |
41.3 |
8.8 |
35.5 |
57 |
48 |
32 |
36 |
|
|
1DFS9-36-12 |
M36X2 |
3/4" |
25 |
41.3 |
8.8 |
36 |
60 |
48 |
32 |
46 |
|
|
1DFS9-36-16 |
M36X2 |
1" |
25 |
47.6 |
9.5 |
41 |
65 |
60 |
41 |
46 |
|
|
1DFS942-16 |
M42X2 |
1" |
30 |
47.6 |
9.5 |
41.5 |
68 |
60 |
41 |
50 |
|
|
1DFS942-20 |
M42X2 |
1.1/4" |
30 |
54 |
10.3 |
44.5 |
71 |
68 |
46 |
50 |
|
|
1DFS9-52-20 |
M52X2 |
1.1/4" |
38 |
54 |
10.3 |
45 |
76 |
68 |
46 |
60 |
31.5 Heavy series S |
|
1DFS9-52-24 |
M52X2 |
1.1/2" |
38 |
63.5 |
12.6 |
56 |
87 |
76 |
50 |
60 |
|
|
Note:ln case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert
suffix "RN"after our part NO.,for example 1DFS9-52-24RN.
|
|||||||||||
