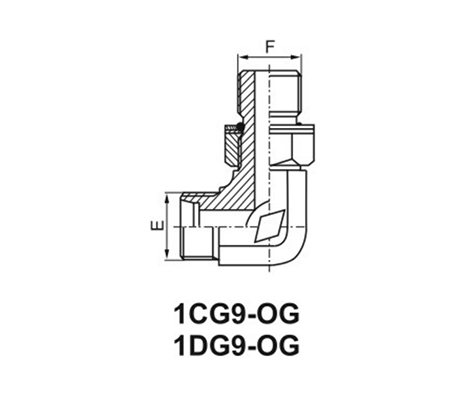

PART NO. |
THREAD |
TUBE O.D. |
DIMENSIONS |
MPa |
||||||
|
E |
F |
D1 |
I1 |
L1 |
L2 |
S1 |
S2 |
S3 |
||
|
1CG9-12-02OG |
M12X1.5 |
G1/8"X28 |
6 |
13 |
28 |
26.2 |
11 |
14 |
14 |
31.5 Light series L |
|
1CG9-14-04OG |
M14X1.5 |
G1/4"X19 |
8 |
15.5 |
30.5 |
31.3 |
14 |
17 |
19 |
|
|
1CG9-16-04OG |
M16X1.5 |
G1/4"X19 |
10 |
17.5 |
32.5 |
32.5 |
16 |
19 |
19 |
|
|
1CG9-16-06OG |
M16X1.5 |
G3/8"X19 |
10 |
17.5 |
32.5 |
35.8 |
16 |
19 |
22 |
|
|
1CG9-18-06OG |
M18X1.5 |
G3/8"X19 |
12 |
19 |
34 |
36.8 |
19 |
22 |
22 |
|
|
1CG9-22-08OG |
M22X1.5 |
G1/2"X14 |
15 |
22 |
37 |
43.2 |
22 |
27 |
27 |
|
|
1CG9-26-08OG |
M26X1.5 |
G1/2"X14 |
18 |
25.5 |
42 |
46 |
27 |
32 |
27 |
|
|
1CG9-26-12OG |
M26X1.5 |
G3/4"X14 |
18 |
25.5 |
42 |
49.3 |
27 |
32 |
32 |
|
|
1CG9-30-12OG |
M30X2 |
G3/4"X14 |
22 |
29.3 |
45.8 |
52 |
30 |
36 |
32 |
16 Light series L |
|
1CG9-30-16OG |
M30X2 |
G1"X11 |
22 |
31.5 |
48 |
53 |
33 |
36 |
41 |
|
|
1CG9-36-16OG |
M36X2 |
G1"X11 |
28 |
33 |
49.8 |
56 |
36 |
41 |
41 |
|
|
1CG9-36-20OG |
M36X2 |
G1.1/4"X11 |
28 |
36 |
52.8 |
59 |
41 |
41 |
50 |
|
|
1CG9-45-20OG |
M45X2 |
G1.1/4"X11 |
35 |
39.2 |
60.7 |
63 |
48 |
50 |
50 |
|
|
1CG9-52-24OG |
M52X2 |
G1.1/2"X11 |
42 |
44.8 |
67.8 |
68.5 |
55 |
60 |
55 |
|
|
1DG9-14-04OG |
M14X1.5 |
G1/4"X19 |
6 |
17.5 |
32.5 |
31.3 |
14 |
17 |
19 |
63 Heavy series S |
|
1DG9-16-04OG |
M16X1.5 |
G1/4"X19 |
8 |
18.7 |
33.7 |
32.5 |
16 |
19 |
19 |
|
|
1DG9-16-06OG |
M16X1.5 |
G3/8"X19 |
8 |
18.7 |
33.7 |
35.8 |
16 |
19 |
22 |
|
|
1DG9-18-06OG |
M18X1.5 |
G3/8"X19 |
10 |
19.5 |
36 |
36.8 |
19 |
22 |
22 |
|
|
1DG9-20-06OG |
M20X1.5 |
G3/8"X19 |
12 |
19.5 |
36 |
36.8 |
19 |
24 |
22 |
|
|
1DG9-22-08OG |
M22X1.5 |
G1/2"X14 |
14 |
23 |
41 |
43.2 |
22 |
27 |
27 |
|
|
1DG9-24-08OG |
M24X1.5 |
G1/2"X14 |
16 |
24 |
42.5 |
43 |
24 |
30 |
27 |
40 Heavy series S |
|
1DG9-30-12OG |
M30X2 |
G3/4"X14 |
20 |
28 |
49.5 |
52 |
30 |
36 |
32 |
|
|
1DG9-36-16OG |
M36X2 |
G1"X11 |
25 |
32.8 |
56.8 |
56 |
36 |
46 |
41 |
|
|
1DG9-42-20OG |
M42X2 |
G1.1/4"X11 |
30 |
36.2 |
62.7 |
58 |
41 |
50 |
50 |
|
|
1DG9-52-24OG |
M52X2 |
G1.1/2"X11 |
38 |
45.8 |
76.8 |
68.5 |
55 |
60 |
55 |
31.5Heavy seriesS |
|

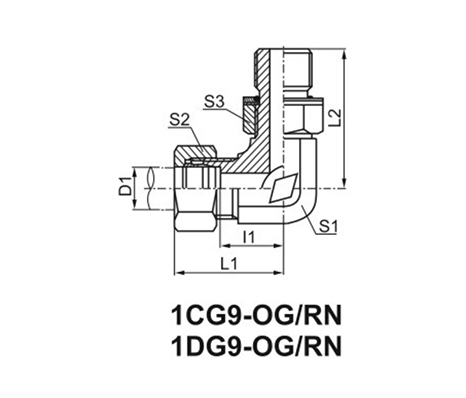

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut.it is necessary to insert suffix “RN” after our part NO.,for example 1CG9-30-12OG/RN. |
||||||||||
