PART NO. |
THREAD |
TUBE O.D. |

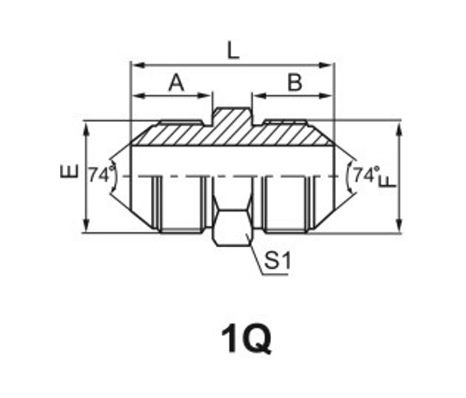

DIMENSIONS |
||||||
|
E |
F |
D1,D2 |
|
A |
B |
L |
S1 |
S2,S3 |
|
|
1Q-10 |
M10X1 |
M10X1 |
5 |
|
12 |
12 |
30 |
12 |
14 |
|
1Q-12 |
M12X1.5 |
M12X1.5 |
6 |
|
15.7 |
15.7 |
37.5 |
14 |
14 |
|
1Q-14 |
M14X1.5 |
M14X1.5 |
8 |
|
17 |
17 |
40 |
17 |
17 |
|
1Q-16 |
M16X1.5 |
M16X1.5 |
10 |
|
18 |
18 |
42 |
17 |
19 |
|
1Q-18 |
M18X1.5 |
M18X1.5 |
12 |
|
18 |
18 |
42 |
19 |
22 |
|
1Q-22 |
M22X1.5 |
M22X1.5 |
14 |
|
19.5 |
19.5 |
47 |
24 |
27 |
|
1Q-24 |
M24X1.5 |
M24X1.5 |
16 |
|
20 |
20 |
50 |
27 |
30 |
|
1Q-27 |
M27X1.5 |
M27X1.5 |
18 |
|
20 |
20 |
50 |
30 |
32 |
|
1Q-30 |
M30X1.5 |
M30X1.5 |
20 |
|
23 |
23 |
57 |
32 |
36 |
|
1Q-30E |
M30X2 |
M30X2 |
20 |
|
26 |
26 |
63 |
32 |
36 |
|
1Q-33 |
M33X2 |
M33X2 |
22 |
|
26 |
26 |
63 |
36 |
38 |
|
1Q-36 |
M36X2 |
M36X2 |
25 |
|
26 |
26 |
63 |
38 |
41 |
|
1Q-39 |
M39X2 |
M39X2 |
28 |
|
26 |
26 |
65 |
41 |
46 |
|
1Q-42 |
M42X2 |
M42X2 |
32 |
|
28.5 |
28.5 |
70 |
46 |
50 |
|
1Q-45 |
M45X2 |
M45X2 |
34 |
|
28.5 |
28.5 |
70 |
46 |
55 |
|

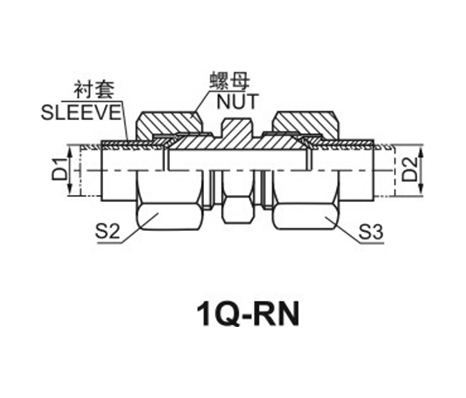

Note:In case if you are interested to order the adapter in complete set with sleeve and nut,it is necessary to insert suffix “RN” after our part NO.,for example 1Q-18RN,The sleeve NO.is NB500-Q and the nut No. is NB200-Q. |
|||||||||
