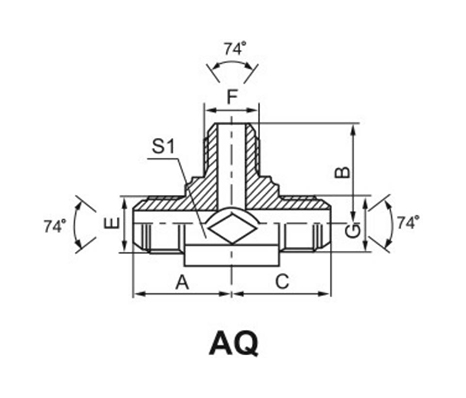

PART NO. |
THREAD |
TUBE O.D. |
DIMENSIONS |
|||||||
|
E |
F |
G |
D1,D2,D3 |
|
A |
B |
C |
S1 |
S2,S3,S4 |
|
|
AQ-14 |
M14X1.5 |
M14X1.5 |
M14X1.5 |
8 |
|
27 |
27 |
27 |
14 |
17 |
|
AQ-16 |
M16X1.5 |
M16X1.5 |
M16X1.5 |
10 |
|
29.5 |
29.5 |
29.5 |
16 |
19 |
|
AQ-18 |
M18X1.5 |
M18X1.5 |
M18X1.5 |
12 |
|
34 |
34 |
34 |
19 |
22 |
|
AQ-22 |
M22X1.5 |
M22X1.5 |
M22X1.5 |
14 |
|
37.5 |
37.5 |
37.5 |
22 |
27 |
|
AQ-27 |
M27X1.5 |
M27X1.5 |
M27X1.5 |
18 |
|
41.5 |
41.5 |
41.5 |
27 |
32 |
|
AQ-30 |
M30X1.5 |
M30X1.5 |
M30X1.5 |
20 |
|
42.8 |
42.8 |
42.8 |
30 |
36 |
|
AQ-33 |
M33X2 |
M33X2 |
M33X2 |
22 |
|
49.5 |
49.5 |
49.5 |
33 |
38 |
|
Note:ln case if you are interested to order the adapter in complete set with sleeve and nut.it is necessary to insert suffix “RN” after our part NO.,for example AQ-18RN,The sleeve NO.is NB500-Q and the nut NO. is NB200-Q. |
||||||||||
