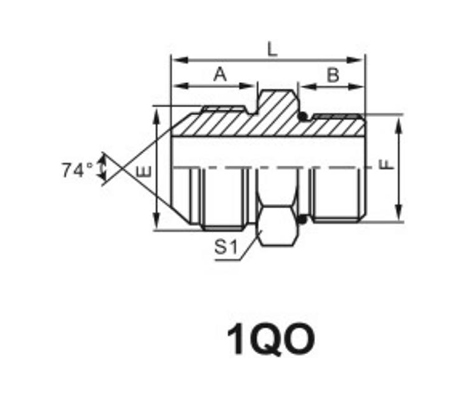

METRIC MALE 74° CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

Home / Specification / Hydraulic Adapter / Metric Thread 74°Cone Flared Tube Fittings / METRIC MALE 74° CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

How Can We Help You?

+86-13805809210 Contact Us

METRIC MALE 74° CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    THREAD

    TUBE O.D.

    O-RING

    DIMENSIONS

    E

    F

    F end

    A

    B

    L

    S1

    S2

    1QO-16-06

    M16X1.5

    9/16"X18

    10

    0906

    18

    9.9

    35

    17

    19

    1QO-18-08

    M18X1.5

    3/4 "X16

    12

    0908

    18

    11.1

    37

    22

    22

    1QO-22-10

    M22X1.5

    7/8"X14

    14

    0910

    19.5

    12.7

    42

    27

    27

    1QO-27-12

    M27X1.5

    1.1/16"X12

    18

    0912

    20

    15.1

    46

    32

    32

    1QO-30-12

    M30X1.5

    1.1/16"X12

    20

    0912

    23

    15.1

    49

    32

    36

    1QO-33-16

    M33X2

    1.5/16"X12

    22

    0916

    26

    15.1

    54

    38

    38

    1QO-39-16

    M39X2

    1.5/16"X12

    28

    0916

    26

    15.1

    58

    41

    46

    1QO-42-20

    M42X2

    1.5/8"X12

    32

    0920

    28.5

    15.1

    58

    50

    50
