PART NO. |
THREAD |
TUBEO.D. |
DIMENSIONS |
||||||
|
E |
F |
D |
|
A |
B |
L |
S1 |
S2 |
|
|
1QN-12-02 |
M12X1.5 |
Z1/8"X27 |
6 |
|
15.7 |
10.5 |
32 |
14 |
14 |
|
1QN-12-04 |
M12X1.5 |
Z1/4"X18 |
6 |
|
15.7 |
15 |
36.5 |
14 |
14 |
|
1QN-14-02 |
M14X1.5 |
Z1/8"X27 |
8 |
|
17 |
10.5 |
33 |
17 |
17 |
|
1QN-14-04 |
M14X1.5 |
Z1/4"X18 |
8 |
|
17 |
15 |
38 |
17 |
17 |
|
1QN-16-04 |
M16X1.5 |
Z1/4"X18 |
10 |
|
18 |
15 |
39 |
19 |
19 |
|
1QN-16-06 |
M16X1.5 |
Z3/8"X18 |
10 |
|
18 |
16 |
40 |
19 |
19 |
|
1QN-18-04 |
M18X1.5 |
Z1/4"X18 |
12 |
|
18 |
15 |
39 |
19 |
22 |
|
1QN-18-06 |
M18X1.5 |
Z3/8"X18 |
12 |
|
18 |
16 |
40 |
19 |
22 |
|
1QN-18-08 |
M18X1.5 |
Z1/2"X14 |
12 |
|
18 |
19.5 |
45.5 |
24 |
22 |
|
1QN-22-06 |
M22X1.5 |
Z3/8"X18 |
14 |
|
19.5 |
16 |
43.5 |
24 |
27 |
|
1QN-22-08 |
M22X1.5 |
Z1/2"X14 |
14 |
|
19.5 |
19.5 |
47 |
24 |
27 |
|
1QN-27-06 |
M27X1.5 |
Z3/8"X18 |
18 |
|
20 |
16.5 |
46 |
30 |
32 |
|
1QN-27-08 |
M27X1.5 |
Z1/2"X14 |
18 |
|
20 |
19 |
49 |
30 |
32 |
|
1QN-27-12 |
M27X1.5 |
Z3/4"X14 |
18 |
|
20 |
19.5 |
49.5 |
30 |
32 |
|
1QN-27-16 |
M27X1.5 |
Z1"X11.5 |
18 |
|
20 |
24 |
55 |
36 |
32 |
|
1QN-30-12 |
M30X2 |
Z3/4"X14 |
20 |
|
23 |
19.5 |
53.5 |
32 |
36 |
|
1QN-33-12 |
M33X2 |
Z3/4"X14 |
22 |
|
26 |
19.5 |
56.5 |
36 |
41 |
|
1QN-36-16 |
M36X2 |
Z1"X11.5 |
25 |
|
25 |
25.5 |
63 |
41 |
41 |
|
1QN-39-16 |
M39X2 |
Z1"X11.5 |
28 |
|
26 |
25.5 |
64.5 |
41 |
46 |
|
1QN-45-16 |
M45X2 |
Z1"X11.5 |
34 |
|
28.5 |
25.5 |
67 |
46 |
50 |
|
1QN-45-20 |
M45X2 |
Z1.1/4"X11.5 |
34 |
|
28.5 |
26.5 |
68 |
46 |
50 |
|
1QN-45-24 |
M45X2 |
Z1.1/2"X11.5 |
34 |
|
28.5 |
27.5 |
71 |
50 |
50 |
|
1QN-52-20 |
M52X2 |
Z1.1/4"X11.5 |
42 |
|
30 |
26.5 |
71.5 |
55 |
60 |
|

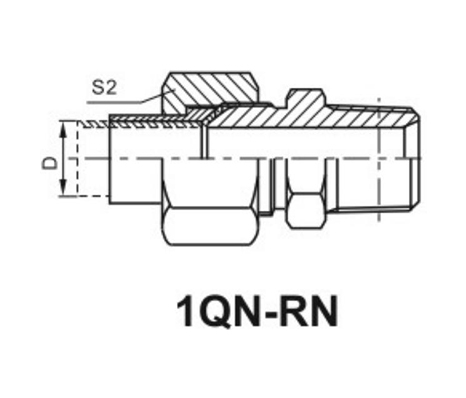

Note: In case if you are interested to order the adapter in complete set with sleeve and nut,it is necessary to insert suffix “RN” after our part NO.,for example 1QN-18-08RN,The sleeve NO.is NB500-Q and the nut NO. is NB200-Q. |
|||||||||
