PART NO. |
THREAD |
TUBE O.D. |
DIMENSIONS |
||||||
|
E |
F |
D |
|
A |
B |
L |
S1 |
S2 |
|
|
1QT-10-02SP |
M10X1 |
R1/4"X19 |
5 |
|
12 |
10 |
28 |
12 |
14 |
|
1QT-14-04SP |
M14X1.5 |
R1/4"X19 |
8 |
|
17 |
14.5 |
37.5 |
17 |
17 |
|
1QT-14-06SP |
M14X1.5 |
R3/8"X19 |
8 |
|
17 |
15 |
38 |
17 |
17 |
|
1QT-16-04SP |
M16X1.5 |
R1/4"X19 |
10 |
|
18 |
14.5 |
38.5 |
17 |
19 |
|
1QT-16-06SP |
M16X1.5 |
R3/8"X19 |
10 |
|
18 |
15 |
39 |
17 |
19 |
|
1QT-18-04SP |
M18X1.5 |
R1/4"X19 |
12 |
|
18 |
14.5 |
38.5 |
19 |
22 |
|
1QT-18-06SP |
M18X1.5 |
R3/8"X19 |
12 |
|
18 |
15 |
39 |
19 |
22 |
|
1QT-22-08SP |
M22X1.5 |
R1/2"X14 |
14 |
|
19.5 |
20 |
47.5 |
24 |
27 |
|
1QT-27-08SP |
M27X1.5 |
R1/2"X14 |
18 |
|
20 |
20 |
50 |
30 |
32 |
|
1QT-27-12SP |
M27X1.5 |
R3/4"X14 |
18 |
|
20 |
20 |
50 |
30 |
32 |
|
1QT-30-12SP |
M30X1.5 |
R3/4"X14 |
20 |
|
23 |
20 |
54 |
32 |
36 |
|
1QT-33-12SP |
M33X2 |
R3/4"X14 |
22 |
|
26 |
20 |
57 |
36 |
38 |
|
1QT-36-16SP |
M36X2 |
R1"X11 |
25 |
|
26 |
25.5 |
61.5 |
38 |
41 |
|
1QT-39-16SP |
M39X2 |
R1"X11 |
28 |
|
26 |
25.5 |
64.5 |
41 |
46 |
|
1QT-45-20SP |
M45X2 |
R1.1/4"X11 |
34 |
|
28.5 |
26.5 |
68 |
46 |
55 |
|

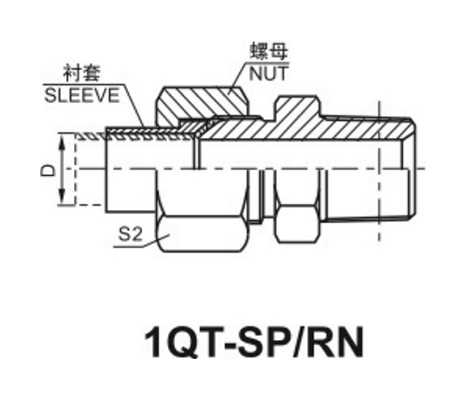

Note: In case if you are interested to order the adapter in complete set with sleeve and nut,it is necessary to insert suffix “RN” after our part NO.,for example 1 QT-22-08SP/RN,The sleeve NO.is NB500-Q and the nut No. is NB200-Q. |
|||||||||
