PART NO. |
THREAD |
TUBE O.D. |
O- RING |
DIMENSIONS |
|||||
|
E |
F |
F end |
A |
B |
L |
S1 |
S2 |
||
|
1QG-14-04 |
M14X1.5 |
G1/4"X19 |
8 |
0111 |
17 |
11 |
36 |
19 |
17 |
|
1QG-16-06 |
M16X1.5 |
G3/8"X19 |
10 |
0113 |
18 |
11.5 |
40 |
22 |
19 |
|
1QG-18-06 |
M18X1.5 |
G3/8"X19 |
12 |
0113 |
18 |
11.5 |
40 |
22 |
22 |
|
1QG-18-08 |
M18X1.5 |
G1/2..X14 |
12 |
0115 |
18 |
14 |
43 |
27 |
22 |
|
1QG-22-08 |
M22X1.5 |
G1/2"X14 |
14 |
0115 |
19.5 |
14 |
44.5 |
27 |
27 |
|
1QG-27-12 |
M27X1.5 |
G3/4..X14 |
18 |
0119 |
20 |
15.5 |
49.5 |
32 |
32 |
|
1QG-30-12 |
M30X1.5 |
G3/4"X14 |
20 |
0119 |
23 |
15.5 |
52.5 |
32 |
36 |
|
1QG-39-16 |
M39X2 |
G1"X11 |
28 |
0217 |
26 |
18 |
60 |
41 |
46 |
|
1QG-45-20 |
M45X2 |
G1_1/4"X11 |
34 |
0222 |
28.5 |
20 |
66.5 |
50 |
55 |
|

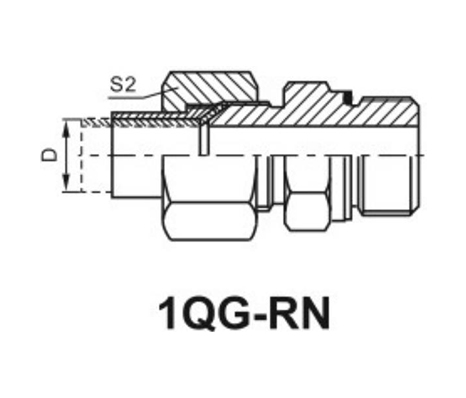

Note:1 In case if you are interested to order the adapter in complete set with sleeve and nut,it is necessary to insert suffix “RN” after our part NO.,for example 1QG-18-06RN,The sleeve NO.is NB500-Q and the nut No. is NB200-Q. 2 F end is connected with DIN 3852 port. |
|||||||||
