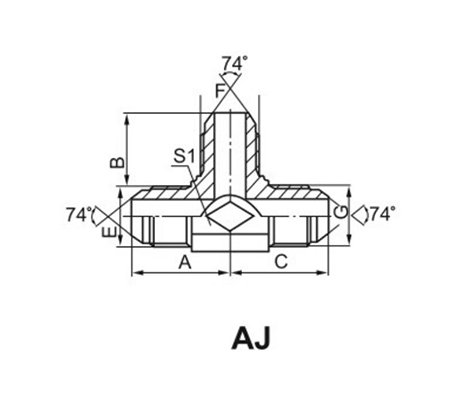

PART NO. |
THREAD |
|
DIMENSIONS |
|||||||
|
E |
F |
G |
|
|
A |
B |
C |
S1 |
|
|
|
AJ-04 |
7/16"X20 |
7/16"X20 |
7/16"X20 |
|
|
24.5 |
24.5 |
24.5 |
11 |
|
|
AJ-04-06-04 |
7/16"X20 |
9/16"X18 |
7/16"X20 |
|
|
26.6 |
26.9 |
26.6 |
14 |
|
|
AJ-05 |
1/2"X20 |
1/2"X20 |
1/2"X20 |
|
|
26 |
26 |
26 |
14 |
|
|
AJ-06-04-06 |
9/16"X18 |
7/16"X20 |
9/16"X18 |
|
|
26.9 |
26.6 |
26.9 |
14 |
|
|
AJ-06 |
9/16"X18 |
9/16"X18 |
9/16"X18 |
|
|
26.9 |
26.9 |
26.9 |
14 |
|
|
AJ-08 |
3/4"X16 |
3/4"X16 |
3/4”X16 |
|
|
32 |
32 |
32 |
19 |
|
|
AJ-08-06-08 |
3/4"X16 |
9/16"X18 |
3/4"X16 |
|
|
32 |
30 |
32 |
19 |
|
|
AJ-10 |
7/8"X14 |
7/8"X14 |
7/8"X14 |
|
|
37.8 |
37.8 |
37.8 |
22 |
|
|
AJ-12 |
1.1/16"X12 |
1.1/16"X12 |
1.1/16"X12 |
|
|
44.2 |
44.2 |
44.2 |
27 |
|
|
AJ-16 |
1.5/16"X12 |
1.5/16”X12 |
1.5/16"X12 |
|
|
49 |
49 |
49 |
33 |
|
|
AJ-16-12-16 |
1.5/16"X12 |
1.1/16”X12 |
1.5/16"X12 |
|
|
49 |
48 |
49 |
33 |
|
|
AJ-20 |
1.5/8"X12 |
1.5/8”X12 |
1.5/8"X12 |
|
|
56.5 |
56.5 |
56.5 |
41 |
|
|
AJ-24 |
1.7/8"X12 |
1.7/8"X12 |
1.7/8”X12 |
|
|
63 |
63 |
63 |
48 |
|
|
AJ-32 |
2.1/2"X12 |
2.1/2”X12 |
2.1/2"X12 |
|
|
78 |
78 |
78 |
63 |
|
|

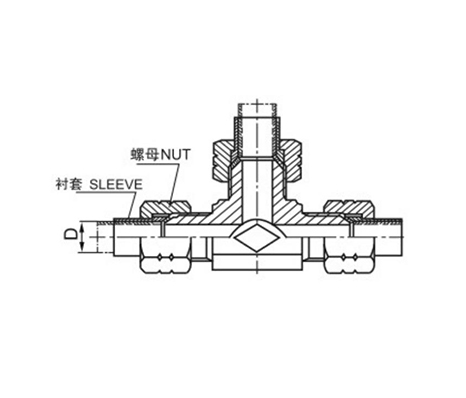

Note: Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube. |
||||||||||
