PART NO. |
THREAD |
O-RING |

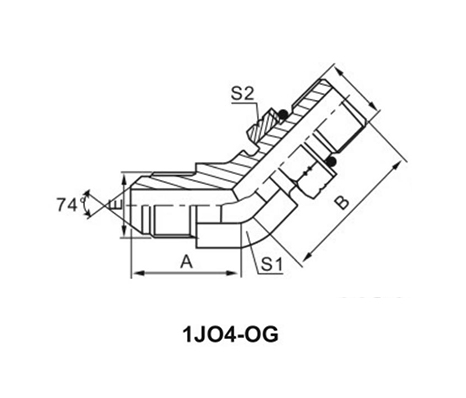

DIMENSIONS |
||||||
|
E |
F |
|
F |
A |
B |
S1 |
S2 |
|
|
|
1JO4-04OG |
7/16"X20 |
7/16"X20 |
|
O904 |
21 |
24 |
11 |
17 |
|
|
1J04-04-060G |
7/16"X20 |
9/16"X18 |
|
O906 |
22.3 |
27.5 |
14 |
19 |
|
|
1J04-04-080G |
7/16”X20 |
3/4"X16 |
|
O908 |
24.5 |
32.5 |
19 |
24 |
|
|
1JO4-05OG |
1/2"X20 |
1/2"X20 |
|
O905 |
22 |
26.7 |
14 |
17 |
|
|
1J04-05-040G |
1/2"X20 |
7/16"X20 |
|
O904 |
22 |
26.7 |
14 |
17 |
|
|
1JO4-06OG |
9/16"X18 |
9/16"X18 |
|
O906 |
23.5 |
28 |
14 |
19 |
|
|
1J04-06-040G |
9/16"X18 |
7/16"X20 |
|
O904 |
22.8 |
26 |
14 |
17 |
|
|
1J04-06-050G |
9/16"X18 |
1/2"X20 |
|
O905 |
22.8 |
26 |
14 |
17 |
|
|
1J04-06-080G |
9/16"X18 |
3/4"X16 |
|
O908 |
25 |
32.5 |
19 |
24 |
|
|
1J04-06-100G |
9/16"X18 |
7/8"X14 |
|
O910 |
25.5 |
38.5 |
22 |
27 |
|
|
1JO4-08OG |
3/4"X16 |
3/4"X16 |
|
O908 |
25.8 |
32.5 |
19 |
24 |
|
|
1J04-08-060G |
3/4"X16 |
9/16"X18 |
|
O906 |
25.5 |
28 |
19 |
19 |
|
|
1J04-08-100G |
3/4"X16 |
7/8"X14 |
|
O910 |
28 |
38.7 |
22 |
27 |
|
|
1JO4-08-12OG |
3/4"X16 |
1.1/16"X12 |
|
O912 |
30 |
43.9 |
27 |
32 |
|
|
1JO4-10OG |
7/8"X14 |
7/8"X14 |
|
O910 |
29.5 |
38.7 |
22 |
27 |
|
|
1J04-10-080G |
7/8"X14 |
3/4"X16 |
|
O908 |
29.5 |
33 |
22 |
27 |
|
|
1JO4-10-12OG |
7/8"X14 |
1.1/16"X12 |
|
O912 |
33 |
43.9 |
27 |
32 |
|
|
1J04-120G |
1.1/16"X12 |
1.1/16"X12 |
|
O912 |
34 |
43.5 |
27 |
32 |
|
|
1JO4-12-10OG |
1.1/16"X12 |
7/8"X14 |
|
O910 |
34 |
42 |
27 |
27 |
|
|
1J04-12-160G |
1.1/16"X12 |
1.5/16"X12 |
|
O916 |
37 |
45.5 |
33 |
41 |
|
|
1J04-140G |
1.3/16"X12 |
1.3/16"X12 |
|
O914 |
37 |
44 |
30 |
36 |
|
|
1J04-160G |
1.5/16"X12 |
1.5/16"X12 |
|
O916 |
38 |
45.5 |
33 |
41 |
|
|
1J04-16-120G |
1.5/16"X12 |
1.1/16"X12 |
|
O912 |
38 |
45 |
33 |
32 |
|
|
1JO4-16-20OG |
1.5/16"X12 |
1.5/8"X12 |
|
O920 |
40.5 |
47 |
41 |
50 |
|
|
1JO4-20OG |
1.5/8"X12 |
1.5/8"X12 |
|
O920 |
42 |
48.5 |
41 |
50 |
|
|
1JO4-20-24OG |
1.5/8"X12 |
1.7/8"X12 |
|
O924 |
46 |
50 |
48 |
55 |
|
|
1J04-240G |
1.7/8"X12 |
1.7/8"X12 |
|
O924 |
48 |
50 |
48 |
55 |
|
|
1J04-320G |
2.1/2"X12 |
2.1/2"X12 |
|
O932 |
58 |
54 |
63 |
70 |
|
|

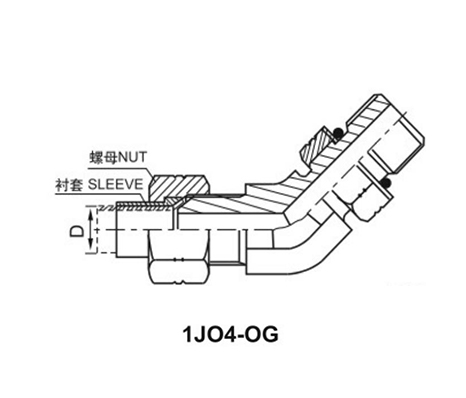

Note:1.Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. 2.F end is connected with IS011926-1 port. |
|||||||||
