Hoses are packed in bundle.So the hose is difficult to draw to straight when it is assemblied.When one end fitting of the assembly is elbow,it exists natural bending direction.
Set hose natural putting plane as horizontal plane.

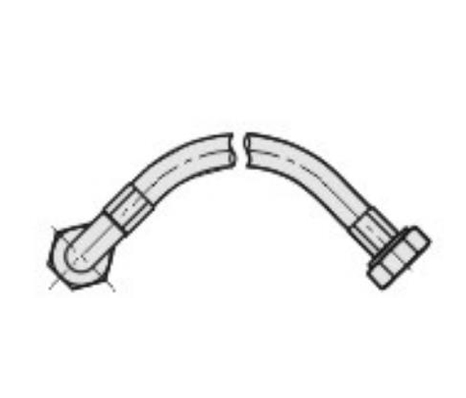

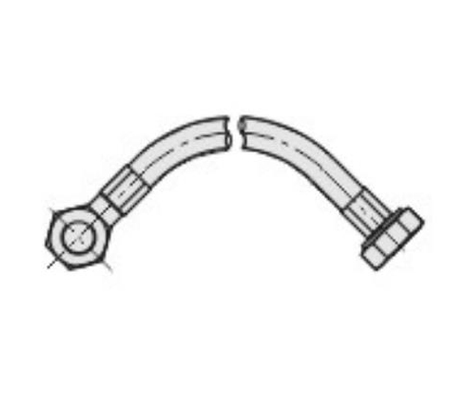

When one fitting is elbow,the other fitting is straight, as shown:
|
Fig. |
Description |
Code |
|
|
One End Vertical Outward |
DCW |
|
|
One End Vertical Inward |
DCN |
|
|
One End Horizontal Upward |
DSS |
|
|
One End Horizontal Downward |
DSX |

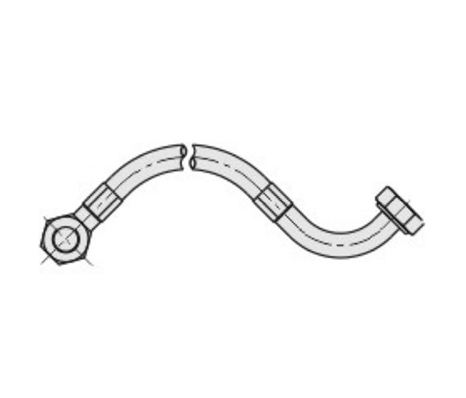

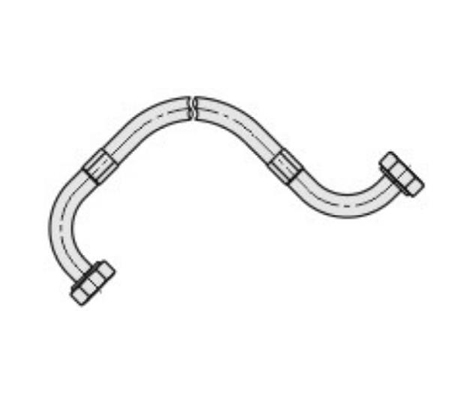

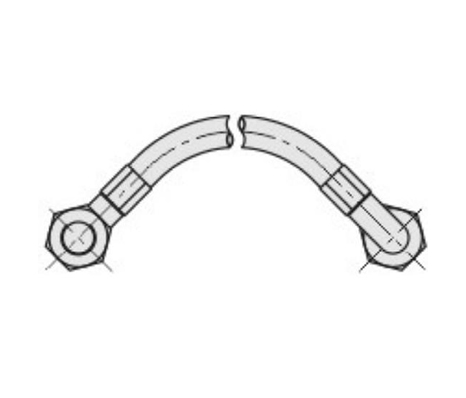

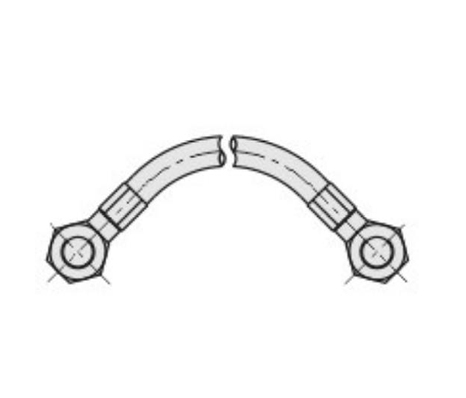

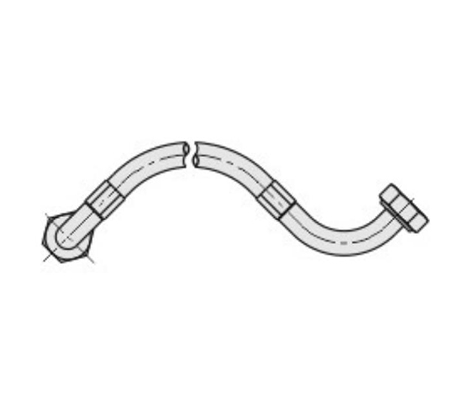

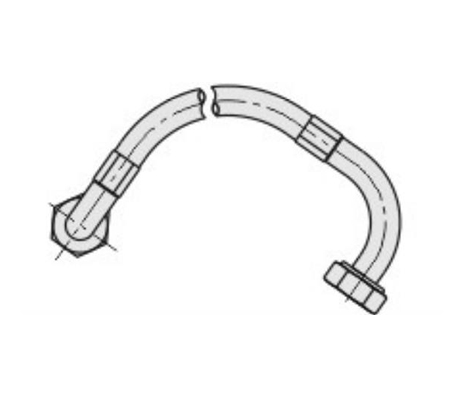

When two fittings of the assembly are both elbow,as shown:
|
Fig. |
Description |
Code |
|
|

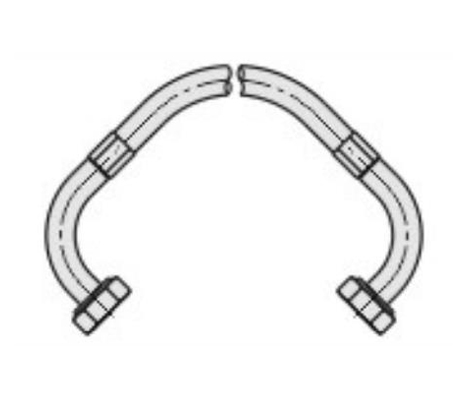

Two Ends Horizontal Downward |
ssx |
|
|

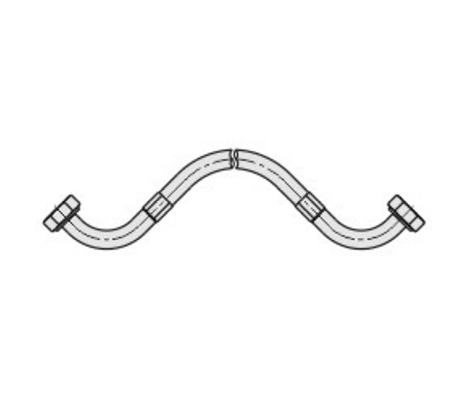

Two Ends Horizontal Upward |
sss |
|
|

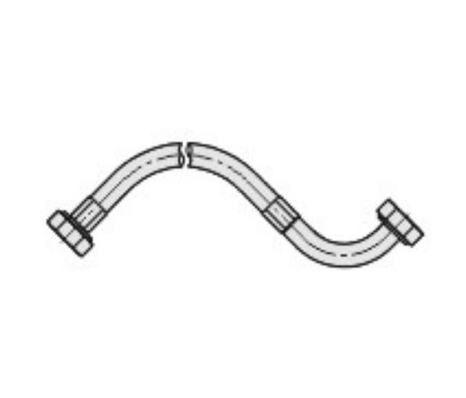

Two Ends in the Different Direction Fitting 1 Downward, Fitting 2 Upward |
SSY |
|
|

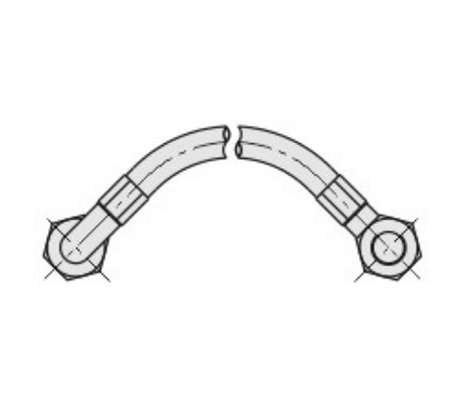

Two Ends in the Same Direction Two Ends Vertical Outward |
STC |
|
|
Two Ends in the Different Direction Fitting 1 Outward, Fitting 2 Inward |
SYC1 |
|
|
Two Ends in the Different Direction Fitting 1 Inward, Fitting 2 Outward |
SYC2 |
|
|
Fitting 1 Vertical Inward Fitting 2 Horizontal Upward |
YNES |
|
|
Fitting 1 Vertical Outward Fitting 2 Horizontal Upward |
YWES |
|
|
Fitting 1 Vertical Inward Fitting 2 Horizontal Downward |
YNEX |
|
|
Fitting 1 Vertical Outward Fitting 2 Horizontal Downward |
YWEX |
