PART NO. |
THREAD E |
HOSE BORE |
TUBE O.D. |

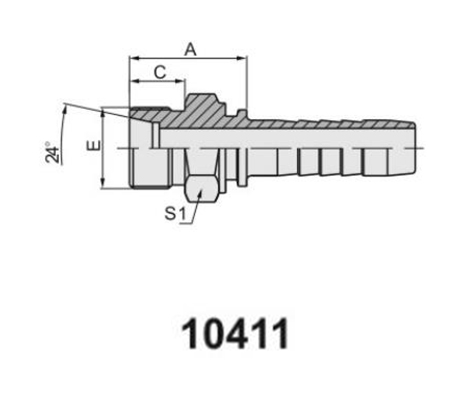

DIMENSIONS |
|||
|
DN |
DASH |
A |
C |
S1 |
|||
|
10411-12-04 |
M12X1.5 |
6 |
04 |
6 |
20.5 |
10 |
12 |
|
10411-14-04 |
M14X1.5 |
6 |
04 |
8 |
20.5 |
10 |
14 |
|
10411-14-05 |
M14X1.5 |
8 |
05 |
8 |
21.5 |
10 |
14 |
|
10411-16-04 |
M16X1.5 |
6 |
04 |
10 |
22.5 |
11 |
17 |
|
10411-16-05 |
M16X1.5 |
8 |
05 |
10 |
22.5 |
11 |
17 |
|
10411-16-06 |
M16X1.5 |
10 |
06 |
10 |
22.5 |
11 |
17 |
|
10411-18-05 |
M18X1.5 |
8 |
05 |
12 |
23.5 |
11 |
19 |
|
10411-18-06 |
M18X1.5 |
10 |
06 |
12 |
21.5 |
11 |
19 |
|
10411-22-06 |
M22X1.5 |
10 |
06 |
15 |
24.5 |
12 |
24 |
|
10411-22-08 |
M22X1.5 |
12 |
08 |
15 |
26 |
12 |
24 |
|
10411-26-08 |
M26X1.5 |
12 |
08 |
18 |
26.5 |
12 |
27 |
|
10411-26-10 |
M26X1.5 |
16 |
10 |
18 |
27 |
12 |
27 |
|
10411-27-10 |
M27X1.5 |
16 |
10 |
18 |
32 |
14 |
30 |
|
10411-30-10 |
M30X2 |
16 |
10 |
22 |
29 |
14 |
32 |
|
10411-30-12 |
M30X2 |
20 |
12 |
22 |
29 |
14 |
32 |
|
10411-36-16 |
M36X2 |
25 |
16 |
28 |
31.5 |
14 |
38 |
|
10411-45-20 |
M45X2 |
32 |
20 |
35 |
36 |
16 |
46 |
|
10411-52-24 |
M52X2 |
40 |
24 |
42 |
38 |
16 |
55 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 10412-xx-xx. |
|||||||
