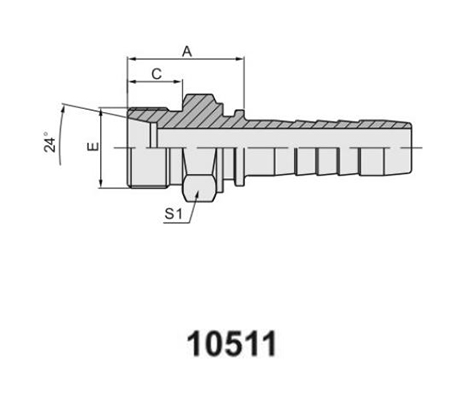

PART NO. |
THREAD E |
HOSE BORE |
TUBE O.D. |
DIMENSIONS |
|||
DN |
DASH |
A |
C |
S1 |
|||
10511-14-04 |
M14X1.5 |
6 |
04 |
6 |
24.1 |
12 |
14 |
10511-16-04 |
M16X1.5 |
6 |
04 |
8 |
26.5 |
12 |
17 |
10511-18-04 |
M18X1.5 |
6 |
04 |
10 |
26.5 |
12 |
19 |
10511-20-05 |
M20X1.5 |
8 |
05 |
12 |
27 |
12 |
22 |
10511-20-06 |
M20X1.5 |
10 |
06 |
12 |
26.5 |
12 |
22 |
10511-22-05 |
M22X1.5 |
8 |
05 |
14 |
30.5 |
14 |
24 |
10511-22-06 |
M22X1.5 |
10 |
06 |
14 |
30.5 |
14 |
24 |
10511-22-08 |
M22X1.5 |
12 |
08 |
14 |
31 |
14 |
24 |
10511-24-08 |
M24X1.5 |
12 |
08 |
16 |
31.5 |
14 |
27 |
10511-30-10 |
M30X2 |
16 |
10 |
20 |
36 |
16 |
32 |
10511-30-12 |
M30X2 |
20 |
12 |
20 |
36 |
16 |
32 |
10511-36-12 |
M36X2 |
20 |
12 |
25 |
40.5 |
18 |
41 |
10511-36-16 |
M36X2 |
25 |
16 |
25 |
41.5 |
18 |
38 |
10511-42-16 |
M42X2 |
25 |
16 |
30 |
44 |
20 |
46 |
10511-42-20 |
M42X2 |
32 |
20 |
30 |
45 |
20 |
46 |
10511-52-20 |
M52X2 |
32 |
20 |
38 |
50 |
22 |
55 |
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 10512-xx-xx. |
