PART NO. |

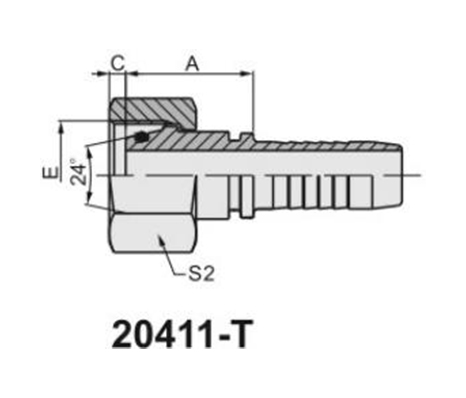

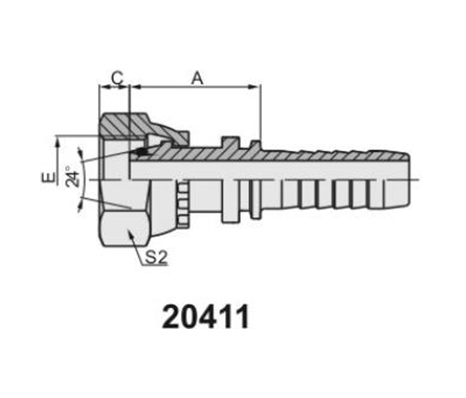

THREAD E |
HOSE BORE |
|
|
DIMENSIONS |
|||
|
DN |
DASH |
TUBE O.D. |
O RING |
A |
C |
S2 |
||
|
20411-12-04 |
M12X1.5 |
6 |
04 |
6 |
O04.5X1.5 |
26 |
1 |
17 |
|
20411-14-04 |
M14X1.5 |
6 |
04 |
8 |
O06.5X1.5 |
27.5 |
2 |
19 |
|
20411-14-06 |
M14X1.5 |
10 |
06 |
8 |
O06.5X1.5 |
27.5 |
2 |
19 |
|
20411-16-04 |
M16X1.5 |
6 |
04 |
10 |
O08.0X1.5 |
28 |
2 |
22 |
|
20411-16-05 |
M16X1.5 |
8 |
05 |
10 |
O08.0X1.5 |
28 |
2 |
22 |
|
20411-16-06 |
M16X1.5 |
10 |
06 |
10 |
O08.0X1.5 |
28 |
2 |
22 |
|
20411-18-05T |
M18X1.5 |
8 |
05 |
12 |
O10.0X1.5 |
27.5 |
1.8 |
22 |
|
20411-18-06 |
M18X1.5 |
10 |
06 |
12 |
O10.0X1.5 |
29 |
2.5 |
24 |
|
20411-18-08 |
M18X1.5 |
12 |
08 |
12 |
O10.0X1.5 |
29.5 |
2.5 |
24 |
|
20411-22-05T |
M22X1.5 |
8 |
05 |
15 |
O12.0X2.0 |
29.5 |
2.1 |
27 |
|
20411-22-06T |
M22X1.5 |
10 |
06 |
15 |
O12.0X2.0 |
29 |
2.5 |
27 |
|
20411-22-08 |
M22X1.5 |
12 |
08 |
15 |
O12.0X2.0 |
32 |
2.5 |
27 |
|
20411-26-10 |
M26X1.5 |
16 |
10 |
18 |
O15.0X2.0 |
35 |
2.5 |
32 |
|
20411-26-12 |
M26X1.5 |
20 |
12 |
18 |
O15.0X2.0 |
35 |
2.5 |
32 |
|
20411-27-10T |
M27X1.5 |
16 |
10 |
18 |
O15.0X2.0 |
28 |
2.5 |
32 |
|
20411-27-12 |
M27X1.5 |
20 |
12 |
18 |
O15.0X2.0 |
35 |
2.5 |
32 |
|
20411-30-10T |
M30X2 |
16 |
10 |
22 |
O20.0X2.0 |
35 |
4 |
36 |
|
20411-30-12 |
M30X2 |
20 |
12 |
22 |
O20.0X2.0 |
38 |
4 |
36 |
|
20411-36-12T |
M36X2 |
20 |
12 |
28 |
O26.0X2.0 |
35 |
4 |
41 |
|
20411-36-14T |
M36X2 |
22 |
14 |
28 |
O26.0X2.0 |
36 |
4 |
41 |
|
20411-45-16T |
M45X2 |
25 |
16 |
35 |
O32.0X2.5 |
41 |
5 |
55 |
|
20411-45-20T |
M45X2 |
32 |
20 |
35 |
O32.0X2.5 |
42 |
5 |
55 |
|
20411-52-20T |
M52X2 |
32 |
20 |
42 |
O38.0X2.5 |
44 |
5.5 |
60 |
|
20411-52-24T |
M52X2 |
40 |
24 |
42 |
O38.0X2.5 |
44 |
5.5 |
60 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20412-xx-xx. |
||||||||
