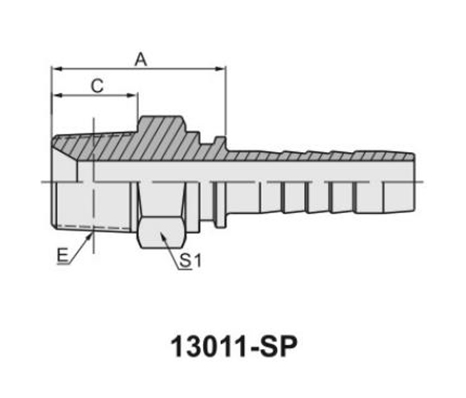

PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
|||
|
DN |
DASH |
A |
C |
S1 |
||
|
13011-02-03SP |
R1/8"X28 |
5 |
03 |
22 |
10 |
12 |
|
13011-02-04SP |
R1/8"X28 |
6 |
04 |
22.5 |
10 |
12 |
|
13011-04-04SP |
R1/4"X19 |
6 |
04 |
27 |
14.5 |
14 |
|
13011-04-05SP |
R1/4"X19 |
8 |
05 |
25 |
15.4 |
14 |
|
13011-04-06SP |
R1/4"X19 |
10 |
06 |
27 |
14.5 |
17 |
|
13011-06-04SP |
R3/8"X19 |
6 |
04 |
27.5 |
15 |
17 |
|
13011-06-05SP |
R3/8"X19 |
8 |
05 |
26.5 |
15 |
17 |
|
13011-06-06SP |
R3/8"X19 |
10 |
06 |
27.5 |
15 |
17 |
|
13011-06-08SP |
R3/8"X19 |
12 |
08 |
30 |
15 |
19 |
|
13011-08-06SP |
R1/2"X14 |
10 |
06 |
34.5 |
20 |
22 |
|
13011-08-08SP |
R1/2"X14 |
12 |
08 |
35 |
20 |
22 |
|
13011-08-10SP |
R1/2"X14 |
16 |
10 |
38 |
20 |
22 |
|
13011-08-12SP |
R1/2"X14 |
20 |
12 |
38 |
20 |
27 |
|
13011-12-08SP |
R3/4"X14 |
12 |
08 |
37 |
20 |
27 |
|
13011-12-10SP |
R3/4"X14 |
16 |
10 |
38 |
20 |
27 |
|
13011-12-12SP |
R3/4"X14 |
20 |
12 |
38.5 |
20 |
27 |
|
13011-12-16SP |
R3/4"X14 |
25 |
16 |
39.5 |
20 |
32 |
|
13011-16-12SP |
R1"X11 |
20 |
12 |
44 |
25.5 |
36 |
|
13011-16-16SP |
R1"X11 |
25 |
16 |
45 |
25.5 |
36 |
|
13011-20-20SP |
R1.1/4"X11 |
32 |
20 |
49.5 |
26.5 |
46 |
|
13011-24-24SP |
R1.1/2"X11 |
40 |
24 |
51.5 |
26.5 |
50 |
|
13011-32-24SP |
R2"X11 |
40 |
24 |
57 |
30 |
65 |
|
13011-32-32SP |
R2"X11 |
50 |
32 |
57 |
30 |
65 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 13012-xx-xxSP. |
||||||
