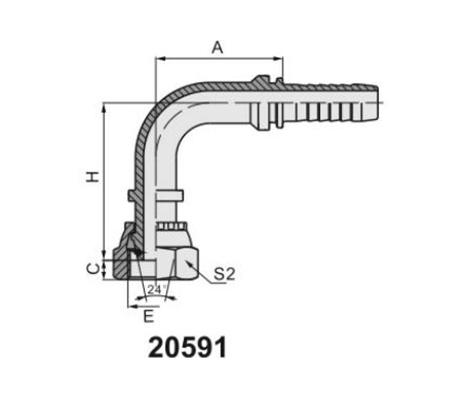

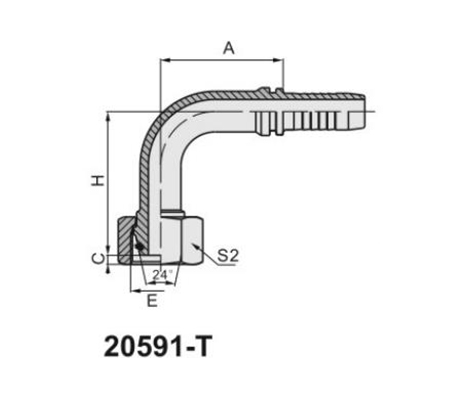

PART NO. |
THREAD E |
HOSE BORE |
TUBE O.D. |
O RING |
DIMENSIONS |
||||
|
DN |
DASH |
A |
C |
H |
S2 |
||||
|
20591-14-04 |
M14X1.5 |
6 |
04 |
6 |
O04.5X1.5 |
30 |
1.1 |
39.5 |
19 |
|
20591-16-04 |
M16X1.5 |
6 |
04 |
8 |
O06.5X1.5 |
30 |
1.5 |
39.5 |
22 |
|
20591-16-05 |
M16X1.5 |
8 |
05 |
8 |
O06.5X1.5 |
33 |
1.5 |
42.5 |
22 |
|
20591-18-05T |
M18X1.5 |
8 |
05 |
10 |
O08.0X1.5 |
33 |
2 |
41.5 |
22 |
|
20591-18-06 |
M18X1.5 |
10 |
06 |
10 |
O08.0X1.5 |
35.3 |
2 |
45.8 |
24 |
|
20591-20-06T |
M20X1.5 |
10 |
06 |
12 |
O10.0X1.5 |
35.8 |
2.5 |
46.3 |
24 |
|
20591-20-08 |
M20X1.5 |
12 |
08 |
12 |
O10.0X1.5 |
41 |
2.5 |
61 |
27 |
|
20591-22-06T |
M22X1.5 |
10 |
06 |
14 |
O11.0X2.0 |
35.3 |
2.5 |
46.8 |
27 |
|
20591-22-08 |
M22X1.5 |
12 |
08 |
14 |
O11.0X2.0 |
41 |
2.5 |
61 |
27 |
|
20591-24-08T |
M24X1.5 |
12 |
08 |
16 |
O13.0X2.0 |
41 |
3 |
53 |
30 |
|
20591-24-10 |
M24X1.5 |
16 |
10 |
16 |
O13.0X2.0 |
56.5 |
2.5 |
67.5 |
30 |
|
20591-30-10T |
M30X2 |
16 |
10 |
20 |
O16.3X2.4 |
56.5 |
3 |
60.5 |
36 |
|
20591-30-12 |
M30X2 |
20 |
12 |
20 |
O16.3X2.4 |
65.5 |
3 |
64 |
36 |
|
20591-36-12T |
M36X2 |
20 |
12 |
25 |
O20.3X2.4 |
66.2 |
3 |
70 |
41 |
|
20591-36-14T |
M36X2 |
22 |
14 |
25 |
O20.3X2.4 |
71.2 |
3 |
71 |
41 |
|
20591-42-16T |
M42X2 |
25 |
16 |
30 |
O25.3X2.4 |
78 |
5 |
77.5 |
50 |
|
20591-52-20T |
M52X2 |
32 |
20 |
38 |
O33.3X2.4 |
93 |
6.5 |
89 |
60 |
|
20591-52-24T |
M52X2 |
40 |
24 |
38 |
O33.3X2.4 |
109.4 |
6.5 |
103 |
60 |
|
Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20592-xx-xx. |
|||||||||
