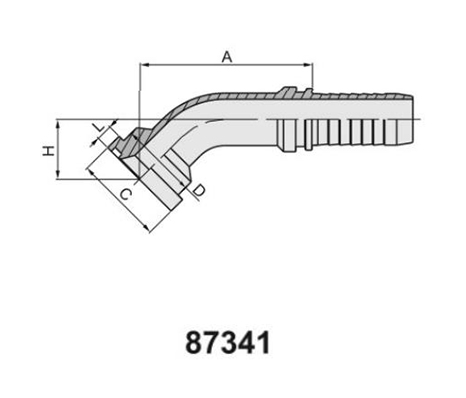

PART NO. |
FLANGE SIZE |
HOSE BORE |
DIMENSIONS |
|||||
|
DN |
DASH |
A |
C |
D |
H |
L |
||
|
87341-08-08 |
1/2" |
12 |
08 |
58.2 |
30.2 |
24 |
23.3 |
6.73 |
|
87341-12-08 |
3/4" |
12 |
08 |
58.9 |
38.1 |
31.7 |
24 |
6.73 |
|
87341-12-10 |
3/4" |
16 |
10 |
70.1 |
38.1 |
31.7 |
25.3 |
6.73 |
|
87341-12-12 |
3/4" |
20 |
12 |
77 |
38.1 |
31.7 |
28.9 |
6.73 |
|
87341-16-12 |
1" |
20 |
12 |
77 |
44.4 |
38 |
28.9 |
8 |
|
87341-16-16 |
1" |
25 |
16 |
85.2 |
44.4 |
38 |
29.7 |
8 |
|
87341-16-20 |
1" |
32 |
20 |
94.5 |
44.4 |
38 |
33.8 |
8 |
|
87341-20-16 |
1.1/4" |
25 |
16 |
85.2 |
50.8 |
43 |
29.7 |
8 |
|
87341-20-20 |
1.1/4" |
32 |
20 |
94.5 |
50.8 |
43 |
33.8 |
8 |
|
87341-24-20 |
1.1/2" |
32 |
20 |
95.9 |
60.3 |
50 |
35.2 |
8 |
|
87341-24-24 |
1.1/2" |
40 |
24 |
109.9 |
60.3 |
50 |
39.1 |
8 |
|
87341-32-24 |
2" |
40 |
24 |
109.9 |
71.4 |
62 |
39.1 |
9.53 |
|
87341-32-32 |
2" |
50 |
32 |
129.3 |
71.4 |
62 |
46.3 |
9.53 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses.hose fitting series number is 87342-xx-xx. |
||||||||
