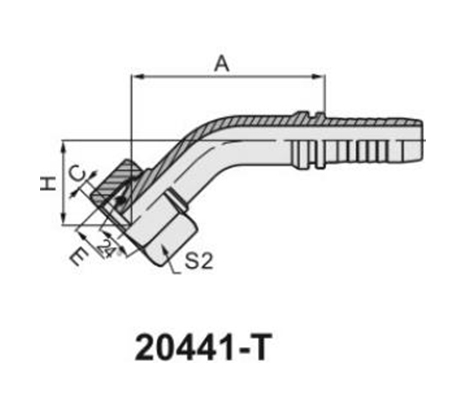

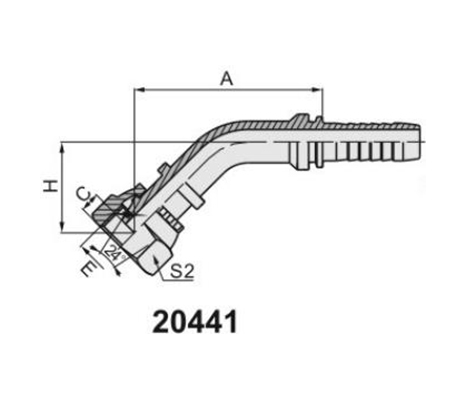

PART NO. |
THREAD E |
HOSE BORE |
|
|
DIMENSIONS |
||||
|
DN |
DASH |
TUBE O.D. |
O RING |
A |
C |
H |
S2 |
||
|
20441-14-04 |
M14X1.5 |
6 |
04 |
8 |
O06.5X1.5 |
44.1 |
2 |
22 |
19 |
|
20441-16-05 |
M16X1.5 |
8 |
05 |
10 |
O08.0X1.5 |
46.2 |
2 |
22.9 |
22 |
|
20441-16-06 |
M16X1.5 |
10 |
06 |
10 |
O08.0X1.5 |
53.4 |
2 |
29.2 |
22 |
|
20441-18-05T |
M18X1.5 |
8 |
05 |
12 |
O10.0X1.5 |
46.2 |
2.5 |
22.9 |
22 |
|
20441-18-06 |
M18X1.5 |
10 |
06 |
12 |
O10.0X1.5 |
48.2 |
2.5 |
23.9 |
24 |
|
20441-22-05T |
M22X1.5 |
8 |
05 |
15 |
O12.0X2.0 |
48.3 |
2.5 |
25 |
27 |
|
20441-22-06T |
M22X1.5 |
10 |
06 |
15 |
O12.0X2.0 |
50.4 |
2.5 |
25.7 |
27 |
|
20441-22-08 |
M22X1.5 |
12 |
08 |
15 |
O12.0X2.0 |
61.8 |
2.5 |
26.8 |
27 |
|
20441-26-08T |
M26X1.5 |
12 |
08 |
18 |
O15.0X2.0 |
62 |
2.5 |
26.1 |
32 |
|
20441-26-10 |
M26X1.5 |
16 |
10 |
18 |
O15.0X2.0 |
73.9 |
2.5 |
29.6 |
32 |
|
20441-26-12 |
M26X1.5 |
20 |
12 |
18 |
O15.0X2.0 |
86.9 |
2.5 |
39.5 |
32 |
|
20441-27-10T |
M27X1.5 |
16 |
10 |
18 |
O15.0X2.0 |
72 |
2.5 |
27.7 |
32 |
|
20441-27-12 |
M27X1.5 |
20 |
12 |
18 |
O15.0X2.0 |
86.9 |
2.5 |
39.5 |
32 |
|
20441-30-10T |
M30X2 |
16 |
10 |
22 |
O20.0X2.0 |
75.1 |
4 |
30.3 |
36 |
|
20441-30-12 |
M30X2 |
20 |
12 |
22 |
O20.0X2.0 |
77.1 |
4 |
29.6 |
36 |
|
20441-36-12T |
M36X2 |
20 |
12 |
28 |
O26.0X2.0 |
82 |
4 |
33.9 |
41 |
|
20441-36-14T |
M36X2 |
22 |
14 |
28 |
O26.0X2.0 |
83.7 |
4 |
33.3 |
41 |
|
20441-45-20T |
M45X2 |
32 |
20 |
35 |
O32.0X2.5 |
99.6 |
5 |
40.8 |
55 |
|
20441-52-20T |
M52X2 |
32 |
20 |
42 |
O38.0X2.5 |
103 |
5.5 |
41.9 |
60 |
|
20441-52-24T |
M52X2 |
40 |
24 |
42 |
O38.0X2.5 |
117 |
5.5 |
45.8 |
60 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20442-xx-xx. |
|||||||||
