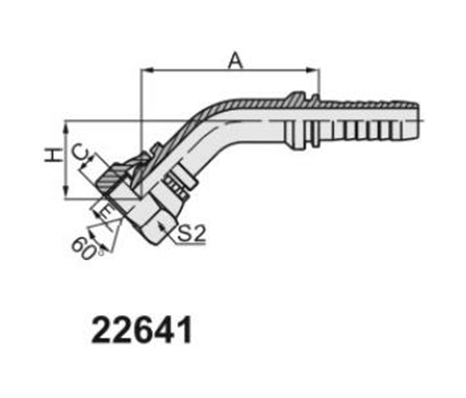

PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
||||
|
DN |
DASH |
A |
C |
H |
S2 |
||
|
22641-04-04 |
G1/4"X19 |
6 |
04 |
42.3 |
5.5 |
20.2 |
19 |
|
22641-06-04 |
G3/8"X19 |
6 |
04 |
43.2 |
6.3 |
21 |
22 |
|
22641-06-05 |
G3/8"X19 |
8 |
05 |
45.3 |
6.3 |
22 |
22 |
|
22641-06-06 |
G3/8"X19 |
10 |
06 |
46.9 |
6.3 |
22.6 |
22 |
|

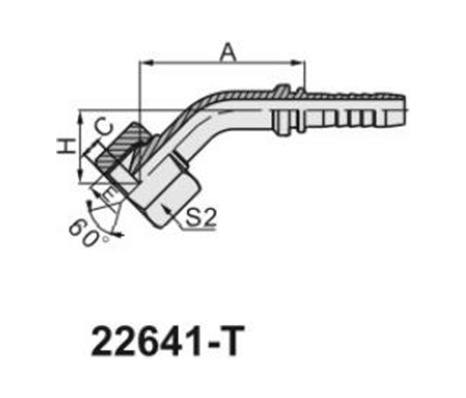

22641-08-06T |
G1/2"X14 |
10 |
06 |
48.1 |
7.5 |
23.9 |
27 |
|
22641-08-08 |
G1/2"X14 |
12 |
08 |
61.1 |
7.5 |
26.1 |
27 |
|
22641-10-08 |
G5/8"X14 |
12 |
08 |
61.4 |
9.5 |
26.5 |
30 |
|
22641-10-10 |
G5/8"X14 |
16 |
10 |
72.6 |
9.5 |
27.8 |
30 |
|
22641-12-08T |
G3/4"X14 |
12 |
08 |
61.8 |
10.9 |
26.9 |
32 |
|
22641-12-10 |
G3/4"X14 |
16 |
10 |
73 |
10.9 |
28.2 |
32 |
|
22641-12-12 |
G3/4"X14 |
20 |
12 |
79.2 |
10.9 |
31.8 |
32 |
|
22641-16-12T |
G1"X11 |
20 |
12 |
80.8 |
11.7 |
33.4 |
41 |
|
22641-16-16 |
G1"X11 |
25 |
16 |
88.4 |
11.7 |
34.2 |
41 |
|
22641-20-16T |
G1.1/4"X11 |
25 |
16 |
85.3 |
11 |
31.1 |
50 |
|

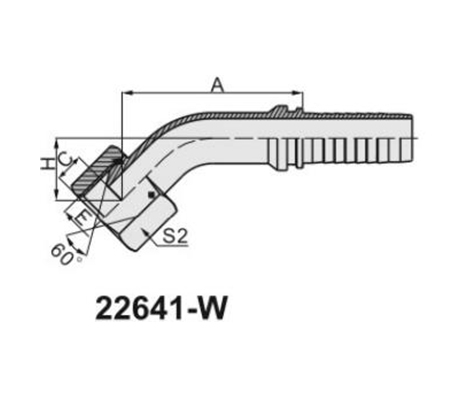

22641-20-20W |
G1.1/4"X11 |
32 |
20 |
98.8 |
11 |
38 |
50 |
|
22641-24-24W |
G1.1/2"X11 |
40 |
24 |
116.8 |
13 |
45.5 |
55 |
|
22641-32-32W |
G2"X11 |
50 |
32 |
135.7 |
16 |
52.7 |
70 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 22642-xx-xx. |
|||||||
