BSPT MALE PLUG

Home / Specification / Hydraulic Adapter / BSPT Thread Fittings / BSPT MALE PLUG

How Can We Help You?

+86-13805809210 Contact Us

BSPT MALE PLUG

+86-13967892895 Contact Us
  • Description
  • Additional Information

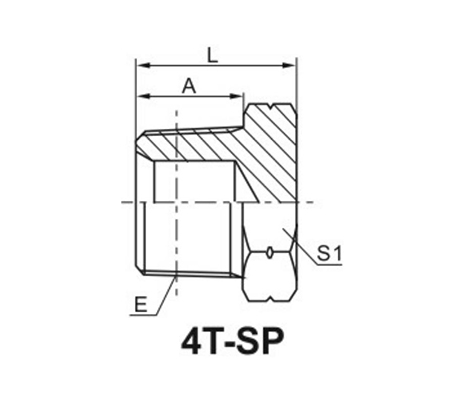

  • PART NO.

    THREAD



    DIMENSIONS

    E







    A

    L

    S1





    4T-02SP

    R1/8"X28







    10

    16

    12





    4T-04SP

    R1/4"X19







    14.5

    20

    14





    4T-06SP

    R3/8"X19







    15

    21

    17





    4T-08SP

    R1/2"X14







    20

    27

    22





    4T-12SP

    R3/4"X14







    20

    29

    27





    4T-16SP

    R1"X11







    25.5

    36.5

    36





    4T-20SP

    R1.1/4"X11







    26.5

    38.5

    46





    4T-24SP

    R1.1/2"X11







    26.5

    42

    50





    4T-32SP

    R2"X11







    30

    47

    65
