90° ELBOW BSPT FEMALE

Home / Specification / Hydraulic Adapter / BSPT Thread Fittings / 90° ELBOW BSPT FEMALE

How Can We Help You?

+86-13805809210 Contact Us

90° ELBOW BSPT FEMALE

+86-13967892895 Contact Us
  • Description
  • Additional Information

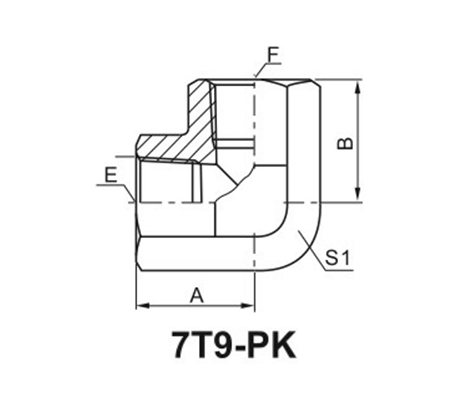

  • PART NO.

    THREAD



    DIMENSIONS

    E

    F





    A

    B

    S1





    7T9-02PK

    Rc1/8"X28

    Rc1/8"X28





    20

    20

    16





    7T9-02-04PK

    Rc1/8"X28

    Rc1/4"X19





    20

    22.5

    19





    7T9-04PK

    Rc1/4"X19

    Rc1/4"X19





    22.5

    22.5

    19





    7T9-06PK

    Rc3/8"X19

    Rc3/8"X19





    26

    26

    24





    7T9-08PK

    Rc1/2"X14

    Rc1/2"X14





    31

    31

    27





    7T9-12PK

    Rc3/4"X14

    Rc3/4"X14





    34

    34

    33





    7T9-16PK

    Rc1"X11

    Rc1"X11





    42

    42

    41





    7T9-20PK

    Rc1.1/4"X11

    Rc1.1/4"X11





    48

    48

    50





    7T9-24PK

    Rc1.1/2"X11

    Rc1.1/2"X11





    53

    53

    60





    7T9-32PK

    Rc2"X11

    Rc2"X11





    62

    62

    70
