90° ELBOW BSP MALE 60° SEAT BULKHEAD

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    THREAD



    DIMENSIONS

    E

    F





    A

    B

    S1

    S2



    6B9-04

    G1/4”X19

    G1/4”X19





    25

    51

    16

    19



    6B9-06

    G3/8"X19

    G3/8"X19





    29

    53.5

    19

    22



    6B9-08

    G1/2"X14

    G1/2"X14





    34.5

    58.5

    22

    22



    6B9-12

    G3/4”X14

    G3/4”X14





    41

    64

    30

    32



    6B9-16

    G1”X11

    G1"X11





    47.5

    71

    33

    41

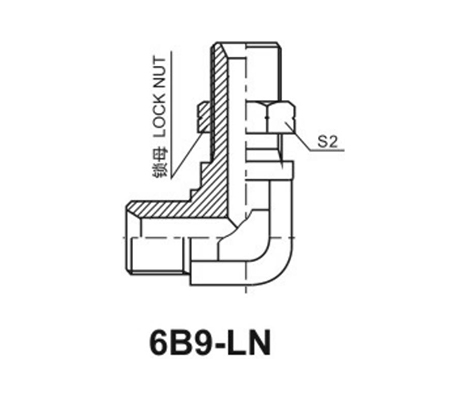

    Note: In case if you are interested to order the adapter in complete set with lock nut,it is necessary to insert suffix “LN” after our part NO.,for example 6B9-16LN. The lock nut No.is 8B.
