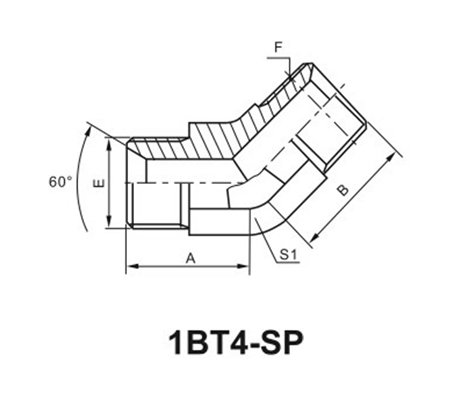

PART NO. |
THREAD |
|
DIMENSIONS |
||||||
|
E |
F |
|
|
A |
B |
S1 |
|
|
|
|
1BT4-02SP |
G1/8"X28 |
R1/8"X28 |
|
|
17 |
17 |
11 |
|
|
|
1BT4-04SP |
G1/4"X19 |
R1/4"X19 |
|
|
20.3 |
21 |
14 |
|
|
|
1BT4-04-06SP |
G1/4"X19 |
R3/8"X19 |
|
|
20.5 |
23 |
16 |
|
|
|
1BT4-06SP |
G3/8"X19 |
R3/8"X19 |
|
|
22 |
23 |
16 |
|
|
|
1BT4-06-04SP |
G3/8"X19 |
R1/4"X19 |
|
|
22 |
21 |
16 |
|
|
|
1BT4-06-08SP |
G3/8"X19 |
R1/2"X14 |
|
|
24 |
29.5 |
22 |
|
|
|
1BT4-06-12SP |
G3/8"X19 |
R3/4"X14 |
|
|
25.5 |
30.5 |
27 |
|
|
|
1BT4-08SP |
G1/2"X14 |
R1/2"X14 |
|
|
27 |
29.5 |
22 |
|
|
|
1BT4-08-06SP |
G1/2"X14 |
R3/8"X19 |
|
|
27 |
25 |
22 |
|
|
|
1BT4-08-12SP |
G1/2"X14 |
R3/4"X14 |
|
|
28.5 |
30.5 |
27 |
|
|
|
1BT4-10-08SP |
G5/8"X14 |
R1/2"X14 |
|
|
28.5 |
29.5 |
22 |
|
|
|
1BT4-10-12SP |
G5/8"X14 |
R3/4"X14 |
|
|
29 |
35 |
27 |
|
|
|
1BT4-12SP |
G3/4"X14 |
R3/4"X14 |
|
|
31 |
30.5 |
27 |
|
|
|
1BT4-12-08SP |
G3/4"X14 |
R1/2"X14 |
|
|
31 |
30.5 |
27 |
|
|
|
1BT4-12-16SP |
G3/4"X14 |
R1"X11 |
|
|
32.5 |
38 |
33 |
|
|
|
1BT4-16SP |
G1"X11 |
R1”X11 |
|
|
35 |
38 |
33 |
|
|
|
1BT4-16-12SP |
G1"X11 |
R3/4"X14 |
|
|
35 |
32.5 |
33 |
|
|
|
1BT4-16-20SP |
G1"X11 |
R1.1/4”X11 |
|
|
38.5 |
43 |
41 |
|
|
|
1BT4-20SP |
G1.1/4"X11 |
R1.1/4"X11 |
|
|
38.5 |
43 |
41 |
|
|
|
1BT4-20-16SP |
G1.1/4"X11 |
R1"X11 |
|
|
38.5 |
42 |
41 |
|
|
|
1BT4-20-24SP |
G1.1/4"X11 |
R1.1/2”X11 |
|
|
41.5 |
47.5 |
48 |
|
|
|
1BT4-24SP |
G1.1/2"X11 |
R1.1/2"X11 |
|
|
44 |
47.5 |
48 |
|
|
|
1BT4-24-20SP |
G1.1/2"X11 |
R1.1/4"X11 |
|
|
44 |
45.5 |
48 |
|
|
|
1BT4-24-32SP |
G1.1/2"X11 |
R2"X11 |
|
|
51 |
60.5 |
63 |
|
|
|
1BT4-32SP |
G2"X11 |
R2"X11 |
|
|
49.5 |
55.5 |
63 |
|
|
|
1BT4-32-24SP |
G2"X11 |
R1.1/2"X11 |
|
|
51 |
52.5 |
63 |
|
|
